Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304

  • Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304
  • Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304
  • Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability 1000 pcs a month
Product Details
Control System Integrated Electric Hydraulic Drive Minimum Through Pressure Can Pass 80-120 Tons Of Container Trucks.
Rated Voltage AC220 V 50 Hz. Bollard Diameter 219/273/324mm
Rising Height 600 To 1000mm Steel Thickness 6/8/10/12/15/20
High Light

K12 Crash Automatic Rising Bollards

,

3.7KW Automatic Rising Bollards

,

SS304 Retractable Parking Bollards
Leave a Message
Product Description

Anti collision high security lifting up and drop down K12 crash rating automatic bollard systems



PRODUCT OVERVIEW



SINOMATIC cylindrical lifting bollard is automatic hydraulic type. It is mainly used to control the passage of road vehicles. It can be used together with the gate control system, or it can be used alone; According to the different needs of different customers, it has a variety of configuration options for users to meet the functional requirements of various customers.



ADVANTAGE FEATURES

  • Different thickness of steel is available (default 6 mm)
  • Different color is available
  • Customized size is available
  • Steady and safe due to the OMRON PLC control system
  • Speedy rising time and durable quality with hydraulic pressure
  • Housing with durable and stainless Galvanization
  • Optimization of frame structure, high anti-impact capability, high loading capability
  • High security and anti-collision ability
  • With a reflective band and a low energy consumption LED light at night



PRODUCT PARAMETERS



Item SPECS
System control  Integrated electric and hydraulic
Diameter 219,273,324mm
Outer box size φ350*1120
Rising height 600mm (customized: 800mm, 1000mm)
Thickness 6mm (customized: 8mm, 10mm, 20mm)
Material 304 Stainless steel
Through pressure can bare more than 120 tons of container trucks
Crash rating K12
Rising / Falling speed

Rising speed: ≤ 3s (adjustable)

Falling speed: ≤ 3s (adjustable)
Power supply 3 phase power 380V(control voltage 24V)
System power 3.7KW
Level of protection IP68
LED light Ring LED light, Top LED light (optional)





PRODUCT PHOTO

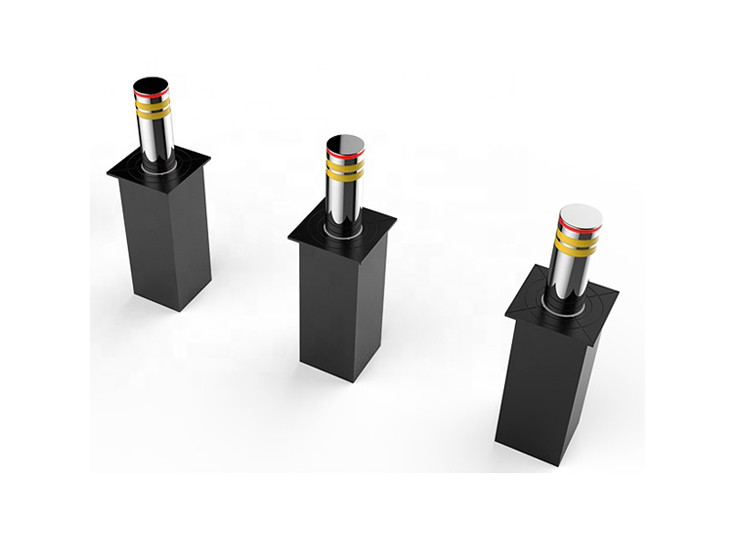

Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304 0

Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304 1



PRODUCT FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting

13. Anti-corrosion performance level: 9



CASE REFERENCE

Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304 2
