K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards
  • K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards
  • K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards
  • K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards
K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards

K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Control System:
Integrated Electric Hydraulic Drive
Minimum Through Pressure:
Can Pass 80-120 Tons Of Container Trucks.
Rated Voltage:
AC220 V 50 Hz.
Bollard Diameter:
219/273/324mm
Rising Height:
600 To 1000mm
Steel Thickness:
6/8/10/12/15/20
Highlight:

K12 Crash Automatic Rising Bollards

,

3.7KW Automatic Rising Bollards

,

SS304 Retractable Parking Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304
Anti-collision High Security Lifting Up and Drop Down K12 Crash Rating Automatic Bollard Systems
PRODUCT OVERVIEW
SINOMATIC cylindrical lifting bollard is an automatic hydraulic system designed to control road vehicle access. It can operate independently or integrate with gate control systems. Multiple configuration options are available to meet diverse customer requirements and functional needs.
ADVANTAGE FEATURES
  • Available in different steel thicknesses (default 6mm)
  • Multiple color options available
  • Customizable sizes to meet specific requirements
  • Stable and safe operation with OMRON PLC control system
  • Fast rising time and durable performance through hydraulic pressure
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capabilities
  • Enhanced security with superior anti-collision ability
  • Reflective band and low energy consumption LED lighting for night visibility
PRODUCT PARAMETERS
System Control Integrated electric and hydraulic
Diameter 219, 273, 324mm
Outer Box Size φ350*1120
Rising Height 600mm (customized: 800mm, 1000mm)
Thickness 6mm (customized: 8mm, 10mm, 20mm)
Material 304 Stainless Steel
Through Pressure Can withstand over 120 tons of container trucks
Crash Rating K12
Rising / Falling Speed Rising speed: ≤ 3s (adjustable)
Falling speed: ≤ 3s (adjustable)
Power Supply 3 phase power 380V (control voltage 24V)
System Power 3.7KW
Level of Protection IP68
LED Light Ring LED light, Top LED light (optional)
PRODUCT PHOTO

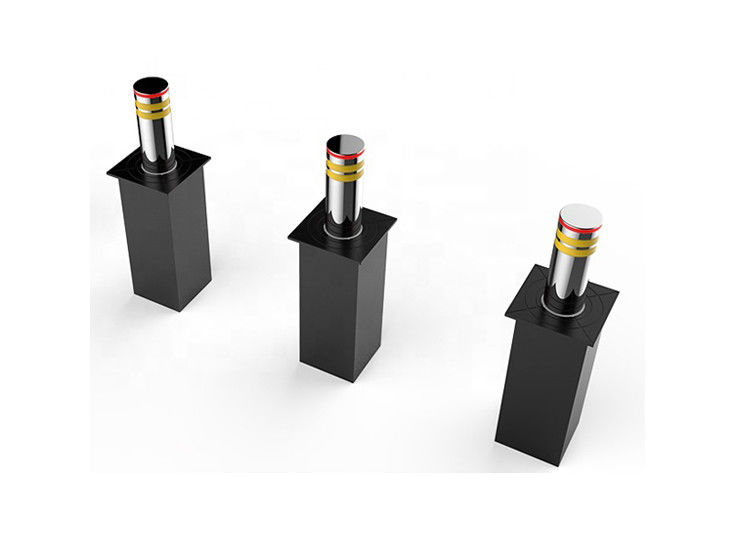

K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards 0 K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards 1
PRODUCT FUNCTIONS & FEATURES
1. Anti-collision: Normal operation after impact from 12-ton vehicle
2. Anti-destructive power: Hydraulic road bollards deform after 16-ton vehicle impact
3. Internal structure: Load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
4. Manual lowering capability during power outages
5. Linkage interface for system integration
6. Reversible operation during ascent and descent
7. Operational noise level ≤60 dB
8. Waterproof integrated hydraulic drive system
9. Control solenoid valve 24V
10. Adjustable control box display text (up, down, start, time control adjustment)
11. English language display text
12. Water immersion performance: No leakage during 48 hours with normal lifting
13. Anti-corrosion performance level: 9
CASE REFERENCE
K12 Crash Rated SS304 Stainless Steel 3.7KW Hydraulic Automatic Rising Bollards 2
