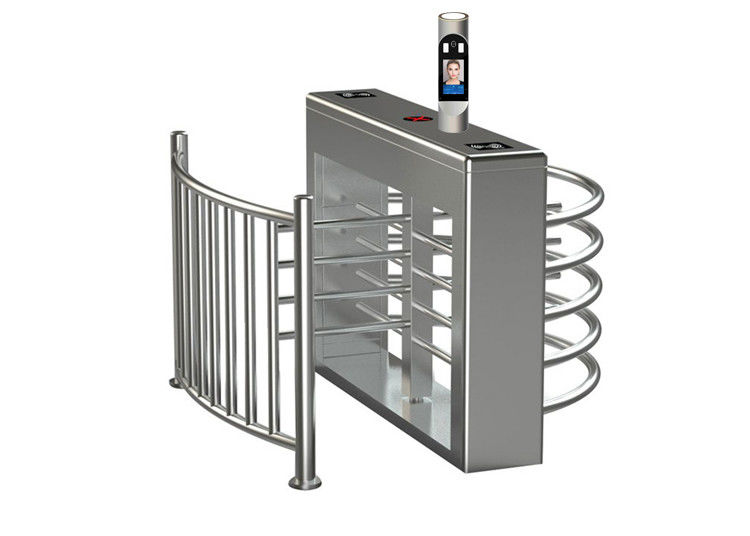

SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate
  • SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate
  • SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate
  • SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate
SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate

SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate

Place of Origin Shenzhen, China
Brand Name Sinomatic
Certification CE
Model Number SN-HH01
Product Details
Standard:
European Standard
Max Flow Rate:
25 To 30person/min
Direction:
Single Or Double Direction
Material Of Housing:
304 Or 316 Stainless Steel
Application:
Indoor/outdoor With Tent
Thickness Of Housing:
1.2mm Or 1.5mm
Highlight:

Face Recognition Waist Height Turnstile

,

30person/min Waist Height Turnstile

,

SS304 Waist High Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Crate
Delivery Time
7~10 days
Payment Terms
T/T, Western union, Visa, MasterCard, PayPal, Stripe, PayPal_BNPL, Apple pay, Google pay, Pix, OXXO, Billie, Online Transfer etc. Alipay
Supply Ability
1000 pcs/month
Product Description
30 Person/Min SS304 Face Recognition Waist Height Turnstile
304 Stainless Steel Security Face Recognition Temperature Sensing Waist Height Turnstile Gate
This waist-height turnstile features a unique mechanical transmission system that integrates microprocessors with various card-reading technologies. Through integration with multiple reading devices, it enables intelligent pedestrian control and management solutions.
Constructed with precision-cut stainless steel, these turnstiles offer elegant aesthetics, exceptional durability, and superior anti-oxidation properties. The system includes standard electrical interfaces for seamless integration with magnetic cards, barcodes, ID and IC cards, providing civilized and well-organized access management.
Features of Half Height Turnstile
  • Cabinet constructed from 304 or 316 stainless steel for maximum durability
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved beyond half-way, returns to current position if moved less than half-way
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Light-touch operation suitable for elderly users and children
  • Configurable for bi-directional or uni-directional operation
  • Secure housing locked with special key to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for silent, impact-free operation
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor required
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 400mm to 500mm
Working Temperature -20°C to 60°C
Product Images
SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate 0 SS304 Stainless Steel Face Recognition Waist Height Turnstile with 30person/min Flow Rate 1
Why Choose Our Turnstile Solutions
  1. 18 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard models kept in stock
  3. Custom OEM/ODM orders to meet specific client requirements
  4. Trial orders accepted for product testing before bulk purchasing
  5. Comprehensive online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days for client inspection
