30person/min SS304 Face Recognition Waist Height Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Standard European Standard Max Flow Rate 25 To 30person/min
Direction Single Or Double Direction Material Of Housing 304 Or 316 Stainless Steel
Application Indoor/outdoor With Tent Thickness Of Housing 1.2mm Or 1.5mm
High Light

Face Recognition Waist Height Turnstile

,

30person/min Waist Height Turnstile

,

SS304 Waist High Turnstile

Leave a Message
Product Description

304 stainless steel security face recognition temperature sensoring waist height turnstile gate



PRODUCT DESCRIPTION



This waist-height turnstile designed with unique mechanical transmission,microprocessors and variety of card-reading machines perfectly integrated together.Through equip various reading&writing machines to realize intelligent pedestrian control and management.



This waist-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation.



Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management .







Features of Half Height Turnstile:

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of half height turnstile



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

400mm to 500mm

Working temperature

-20°C~60°C





PRODUCT PHOTO

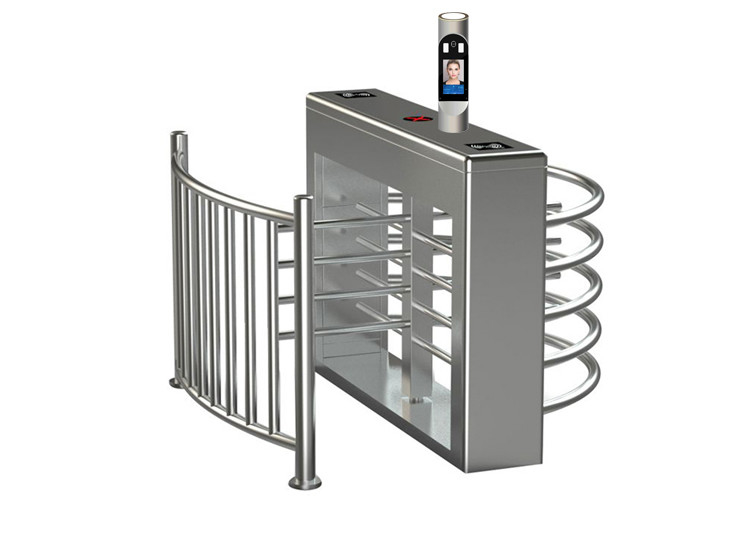

30person/min SS304 Face Recognition Waist Height Turnstile 030person/min SS304 Face Recognition Waist Height Turnstile 1
