AC Motor IP54 9s 3m MTBF Airborne Boom Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
MTBF 3 Million Times Color OEM
IP Grade IP 54 OEM/ODM Supported
Box Weight About 110kg Running Speed 9s
High Light

MTBF Airborne Boom Barrier Gate

,

9s Airborne Boom Barrier Gate

,

9s Parking Lot Barrier Gates

Leave a Message
Product Description

Electric remote control intelligent car park management system airborne boom barrier fence gate



APPLICATION OF AIRBORNE BARRIER GATE



Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.



PRODUCTION OF AIRBORNE AUTO GATE



A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.


As a manufacturer, we have more than 15 years experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after-sales service.



Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.
With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.



AIRBORNE BARRIER GATE SPECIFICATIONS



MTBF 3 million times
IP grade IP54
Input voltage AC220/AC110 50/60HZ
Rated power 250W
Motor type AC motor
Remote control distance less than or equal to 30M
Opening/Closing time 9s
Box weight 110kg
Box dimension 457*686*1275mm
IP rate IP44
Boom length 1m to 6m
Boom height 1168mm
Remote distance ≤30m
Working temperature -30℃~+80℃
Humidity ≤95%

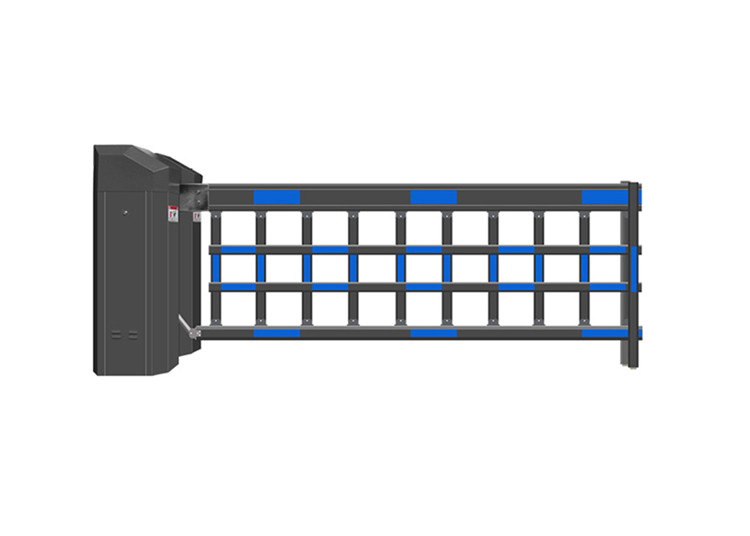

PRODUCT PHOTO



AC Motor IP54 9s 3m MTBF Airborne Boom Barrier Gate 0

AC Motor IP54 9s 3m MTBF Airborne Boom Barrier Gate 1



AIRBORNE BARRIER GATE FEATURES AND FUNCTIONS



1. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.



2. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.



3. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.



4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.



5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.



6. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.



7. Integrating electricity and mechanical control, flexible operation, convenient and reliable.



8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.



9. The system uses a standard electrical interface externally, which can be easily attached to other systems.



10. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.



AIRBORNE BARRIER GATE APPLICATION



AC Motor IP54 9s 3m MTBF Airborne Boom Barrier Gate 2
