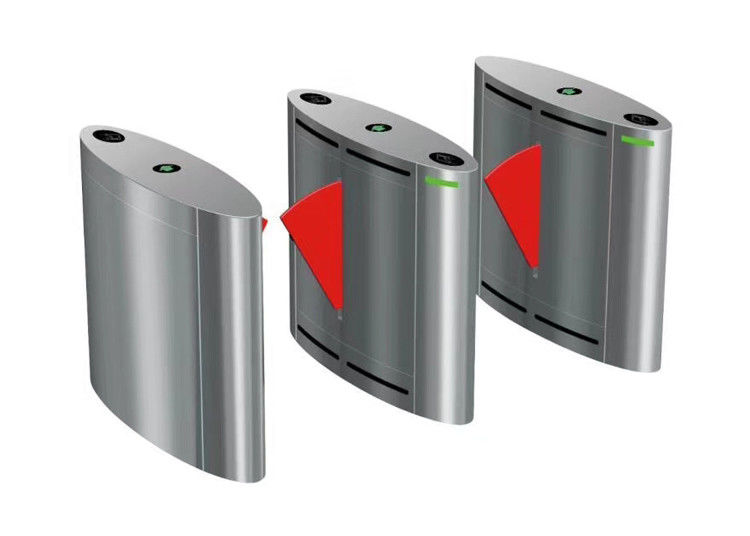

Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time
  • Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time
  • Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time
  • Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time
  • Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time
Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time

Bi-Directional 600mm Width SS304 Flap Barrier Gate with 0.2s Opening Time

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Pass Speed:
40 Pp/ Min
Opening Time:
0.2s
Passing Direction:
Bi-Direction Passing
Housing Dimension:
1200*300*1000
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Control Voltage:
DC24V
Highlight:

SS304 Flap Barrier Gate

,

Bi Directional Flap Barrier Gate

,

600mm Width Pedestrian Waist Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s
Automatic pedestrian waist height green and red color LED light 304 stainless steel security flap gate barrier
Flap Barrier Advantages
  • Problem-self-checking function
  • Bi-directional passing capability
  • Automatic arm opening during power failure with automatic hold upon power restoration
  • Adjustable flap closing delay (1-60 seconds) via control panel after valid card read
  • Auto-reposition function cancels orders when passengers don't pass within regulated time
  • Anti-rush function with tight arm locking when no open signal is received
  • Stable operation with minimal noise
About Sinomatic Flap Barrier Gate System
The flap turnstile is an intelligent channel device that seamlessly integrates with IC card, ID card, QR code, fingerprint, face recognition, and other identification systems. Featuring bridge-type high-end arc design and elegant appearance, it enables smart and efficient access management. Primarily used for entrance and exit control, this system offers safety, convenience, prevention of unauthorized access, and rapid emergency passage control.
Technical Specifications
Working Voltage AC220V±10V / AC110V±10V
Operating Temperature -20 to 60°C
Humidity <95%, without concretion
Passage Width 600mm
Communication Interface RS485 (Distance: <=1200m)
Passing Speed 40 persons/min (normal open), 30 persons/min (normal close)
Flap Length 270mm
Housing Dimension 1200*300*1000mm
Arm Open/Close Time 0.2s
Advanced Features
  • Fault self-test and alarm prompt function for easy maintenance
  • Programmable operating states via built-in push-pull control board
  • Anti-pinch and anti-collision mechanical structure with automatic motor stop
  • Illegal intrusion, trailing alarm, and reverse intrusion protection
  • Anti-shock function with automatic arm locking
  • Synchronously adjustable telescopic arms (for double pendulum)
  • Automatic reset function with adjustable timing (1-60 seconds)
  • Infrared sensor reset and anti-trap function with 5-pair infrared sensors
  • Compatible with access control, consumer, electronic ticket, biometric systems, and electrostatic testers
  • Bi-directional control with infrared sensing in/out channels
  • Voice prompt functionality
  • Remote control and management via computer interface
