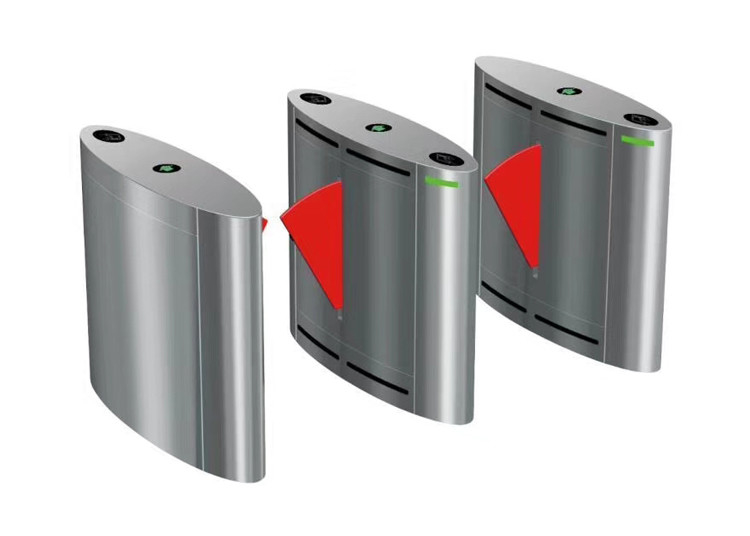

Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s
  • Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s
  • Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s
  • Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s
  • Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s

Bi Directional 600mm Width SS304 Flap Barrier Gate 0.2s

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB04
Product Details
Pass Speed:
40 Pp/ Min
Opening Time:
Passing Direction:
Bi-Direction Passing
Housing Dimension:
Working Temperature:
Reset Time When Power On:
Control Voltage:
High Light:

SS304 Flap Barrier Gate


Bi Directional Flap Barrier Gate


600mm Width Pedestrian Waist Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Automatic pedestrian waist heogjt green and red color LED light 304 stainless steel security flap gate barrier


Flap Barrier Advantage:


1. Problem-self-checking function.

2. Passing direction: Bi-direction

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, flap can be delayed to close from 1-60s which can be set in the control panel.

5. Auto-reposition function: After card read, passenger doesn’t pass within regulated time, turnstile

will cancel order automatically. And the regulated time can be set by managers.

6. Anti-rush function: if there is no open single, arm will be locked tightly.

7. Stable running with little noise.




Flap turnstile is an intelligent channel device, which can easily integrate IC card, ID card, QR code, fingerprint, face and other recognition devices, and can realize the intelligent and efficient management of the channel; it adopts bridge-type high-end arc design and elegant appearance It is mainly used for the management of the entrance and exit of the passage, which has the characteristics of safety, convenience, prevention of illegal entry and exit, and rapid control of free passage in emergency situations.




Working Voltage AC220V±10V / AC110V±10V
Operating Temperature -20 to 60°C
Humidity <95%, without concretion
Passage Width 600mm
Communication Interface RS485 (Distance: <=1200m)
Passing Speed

40 persons/min (normal open),

30 persons/min (normal close)

Flap length 270mm
Housing Dimension 1200*300*1000mm
Arm Open/Close Time                                        0.2s



Features of Flap Barrier Gate


1.With fault self-test and alarm prompt function, convenient for user maintenance and use.


2.Through the built-in small push-pull on the main control board, device operating state can be programed.


3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).


4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes


5.Anti-shock function, the arm is automatically locked when no open signal is received.


6.Telescopic arms are adjustable synchronously (for double pendulum)


7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.


8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)


9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.


10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.


11.Voice prompt function.


12.Remote control and management can be achieved directly through the management computer.
