DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile
  • DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile
  • DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile
  • DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile
DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile

DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Sensing Method:
Slot Reader
Application:
Access Control System
Movement:
Single/Double
Type:
Wing Gate
Flap Opening / Closing Time:
1s
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Control Voltage:
DC24V
Highlight:

Access Control Acrylic Flap Turnstile

,

Clear Acrylic Flap Turnstile

,

10mA Flap Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
DC 24V 10mA Access Control Clear Acrylic Flap Turnstile
Flap Type Automatic Turnstile Control Board Access Control System
The Sinomatic Flap Barrier Gate System is an intelligent channel management device that seamlessly integrates with IC card, ID card, QR code, fingerprint, and facial recognition technologies. Featuring a bridge-type high-end arc design with an elegant appearance, this system provides secure, convenient access control while preventing unauthorized entry and enabling rapid emergency egress.
Applications
  • Factory entrances and exits, stations, wharves, and tourist attractions
  • Recount channel management for exhibitions, swimming pools, and similar venues
  • Time attendance, access control, and consumption management for corporate and commercial buildings
  • Specialized channel management systems
Key Features
  • Built-in fault self-test and alarm prompt functions for simplified maintenance
  • Programmable operating states via main control board push-pull switches
  • Anti-pinch and anti-collision mechanical structure with automatic motor stop
  • Illegal intrusion, trailing alarm, and reverse intrusion protection
  • Anti-shock function with automatic arm locking when no open signal is received
  • Synchronously adjustable telescopic arms for double pendulum models
  • Automatic reset function with adjustable timing from 1-60 seconds
  • Infrared sensor reset and anti-trap functionality with 5-pair infrared sensors
  • Compatible with access control, consumer, electronic ticket, biometric systems, and electrostatic testers
  • Bi-directional control with infrared sensing for entry and exit channels
  • Voice prompt functionality
  • Remote control and management via computer interface
  • Automatic channel opening during power failure (fire safety compliant)
Technical Specifications
Parameter Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Motor Voltage DC 24V
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Direction Configurable as single or double direction
Maximum Flow Rate 25 to 30 persons per minute
Flap Opening/Closing Time 1 second
Flap Length 270mm
Flap Material Acrylic or foam
Working Temperature -20°C to +60°C
Working Humidity 0 to 95% RH
Application Indoor/outdoor with protective covering

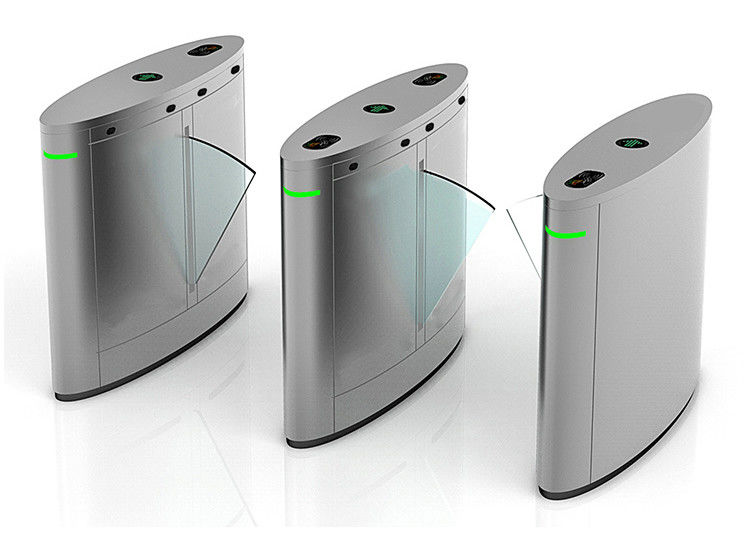

Product Images
DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile 0 DC 24V 10mA Access Control Clear Acrylic Flap Barrier Gate Turnstile 1
Why Choose Our Flap Turnstile Systems
  • 18 years of OEM/ODM experience in access control turnstile manufacturing
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome on working days for client inspection
