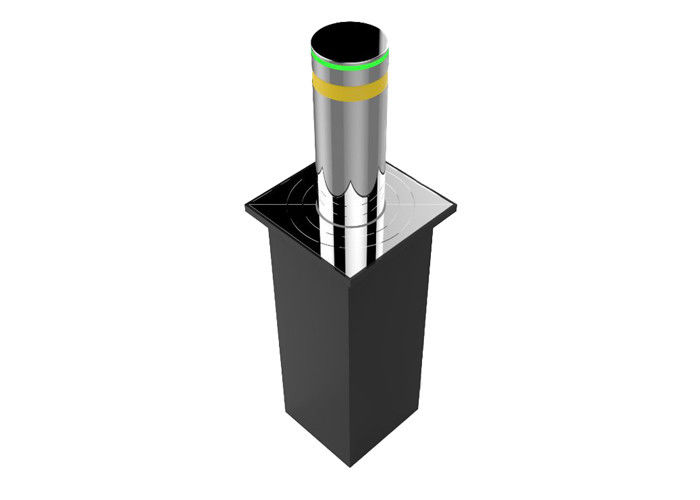

100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable
  • 100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable
  • 100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable
  • 100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable
  • 100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable
100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable

100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
BRAND:
SINOMATIC
MATERIAL:
SS304/MS
Working Temperature:
-65℃~+75℃
System Control:
Hydraulic And Electric Control
LED Color:
10 Types
Bollard Dia:
219, 273, 324mm
Bollard Height:
600 To 1000mm
Bollard Thickness:
6mm To 20mm
Highlight:

SS304 Hydraulic Rising Bollard

,

Remote Control Hydraulic Rising Bollard

,

100 Meter Traffic Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description
100 Meter Remote Control SS304 Hydraulic Rising Bollard
Roadway Automatic Road Traffic industrial level PLC controlled 8K mirror surface hydraulic rising bollard system
Main Features
  • Anti-collision: Can be used normally after being hit by a 12-ton vehicle
  • Anti-destructive power: Withstands impact from 16-ton vehicles with deformation only
  • Internal structure: Load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
  • Manual lowering capability during power outages
  • Linkage interface for system integration
  • Reversible operation during ascent and descent cycles
  • Low noise operation: ≤60 dB during device operation
  • Waterproof integrated hydraulic drive system
  • Control solenoid valve: 24V operation
  • Adjustable control box display text (up, down, start, time control adjustment)
  • Display text available in English and Chinese
  • Water immersion performance: No leakage during 48 hours with normal lifting capability
  • High anti-corrosion performance level: 9
Product Photos
100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable 0 100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable 1
Product Parameters
Parameter Specification
Raising/lowering speed 3-6s (adjustable)
Diameter 273/219mm/324mm
Raised height 600-1000mm (optional)
Control mode Remote control (>50m)
System control Hydraulic and electric control
Working temperature -60℃~+75℃
Lamp belt LED lamp (Acrylic light circle)
Drainage mode Natural drainage + External drainage system
Case Reference
100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable 2
Installation
100 Meter Remote Control SS304 Hydraulic Rising Bollard with 600-1000mm Height Adjustable 3
Frequently Asked Questions
Q1. What is your terms of packing?
First, we will pack our goods by protective film. Then we will pack it in standard export wooden case to protect the goods perfectly.
Q2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU etc.
Q4. How about your delivery time?
Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
