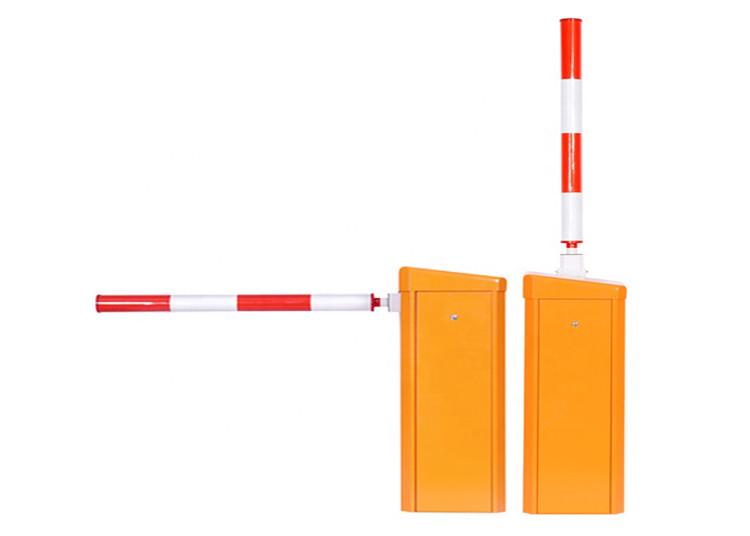

Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W
  • Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W
  • Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W
  • Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W
  • Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W

Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG138
Product Details
Motor Type:
Servo Motor
Feature:
Heavy Duty
Control Type:
Remote Contorl
Arm Function:
Swing Out
Solar Panel:
Supported
Back Up Battery:
Supported
Material:
2.00mm Cold Roll Plate Or Galvanized Plate
Boom Length:
Max 6m
High Light:

6m Boom Automatic Barrier Gate

,

0.6s Automatic Barrier Gate

,

50W Solar Panel Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description

High Speed 0.6s Solar Panel Kits 24V DC Servo Motor Barrier Gate System with octagonal arm



SPECIFICATIONS



Rated Volatge AC90V~AC264V,DC24V,50/60HZ
Speed Time 0.3s,0.6s,0.9s,2s,4s,6s
Motor Power 50W,max 100W
Boom Length 2meter to 6meter(max)
Working Temperature -40℃~85℃
Housing Size 342*312*959*2mm(L*W*H*TH)
Lifetime >10 million times or 10 years
MTTR <0.5hour
MTBF >5 million times
Protection Grade IP68
Remote Controll Distance ≤100 meter
Motor Speed 3000 r/min
Relative Humidity ≤90%
Running Noise <50dB
Net Weight 42.6KG
Application Parking Lots, Toll Gates, Goods Yards, RailwayCrossings,Commercial Premises,Apartment Block Access



PRODUCT DETAILS

Solar Panel 24V DC 0.6s 6m Boom Automatic Barrier Gate 50W 0





Function Description



1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.



2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.



3. A variety of input and output modes can be selected, normally open normally closed optional.



4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.



5. Closing speed can be adjusted, 0.9S, 1.3S.



6. Barrier gate up&down signal relay switch output.



7. Barrier gate running state: OK signal output indicating that the gate is working properly.



8. Barrier gate operation abnormal alarm signal output.



9. Traffic light relay switch signal output.



10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.



11. Count mode interface.



12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.



13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.



14. Delay down selection function.



15. high sensitivity arm auto reverse function (intensity can be adjusted)



16. Parking system interface



17.RS485 or RS232 network communication control up&down interface (no need to install communication module)



18. Anti-collision alarm signal interface.



19. Arm direction can be changed easily



20. Adjustable speed port (S curve adjustment)



21. High-strength precision cast steel, industry moving parts beyond the industry quality



Supply Ability

2400 Set/Sets per Month Adjustable Speed Servo Motor Car Parking Barrier Boom



Packaging & Delivery
High Speed 0.6s Servo Motor Boom Barrier 24V DC Motor For Barrier Gate Manufacturer
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
