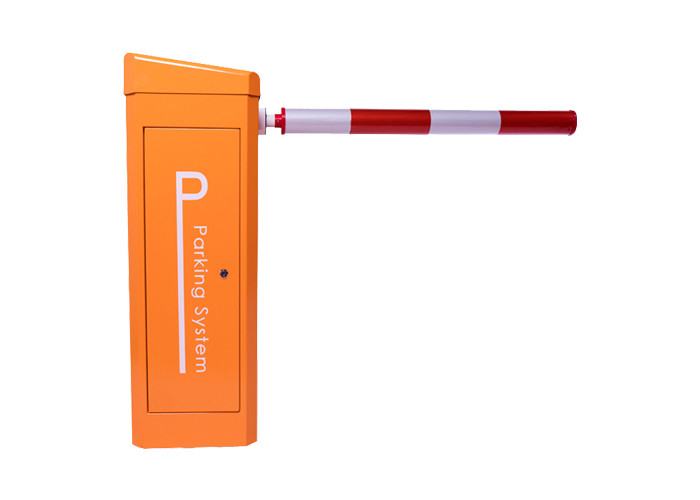

Straight Boom 0.6s 24VDC 150W RS485 Parking Barrier Gate

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BG138
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Brand SINOMATIC Model BG-138 Barrier Gate
Speed 0.6s, 0.9s, 3s, 6s OEM/ODM Supported
Color Orange, Golden, Red, Green, Grey Etc Solar Panel Supported
Battery Supported Material 2.00mm Cold Roll Plate Or Galvanized Plate
High Light

150W Parking Barrier Gate


RS485 Parking Barrier Gate


0.6s Auto Barrier Gate

Leave a Message
Product Description

0.6s High Speed 24VDC Servo Motor Parking Barrier Gate solar power battery kits anti-collision auto barrier gate




Specifications of Automatic Barrier Gate:


Boom length 2m to 6m
Speed 0.6s, 0.9s, 3s, 6s
Rated voltage AC100V ~ AC264V, DC24V, 50Hz ~60Hz
Housing Material Mild steel
Net weight (no boom) 43KG
Power consumption 100W/ 150W
Boom type straight, folding, fencing boom
Working temperature -45°C~+85°C
Protection grade IP54
Driving unit Servo motor


Function Description


1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.


2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.


3. A variety of input and output modes can be selected, normally open normally closed optional.


4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.


5. Closing speed can be adjusted, 0.9S, 1.3S.


6. Barrier gate up&down signal relay switch output.


7. Barrier gate running state: OK signal output indicating that the gate is working properly.


8. Barrier gate operation abnormal alarm signal output.


9. Traffic light relay switch signal output.


10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.


11. Count mode interface.


12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.


13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.


14. Delay down selection function.


15. high sensitivity arm auto reverse function (intensity can be adjusted)


16. Parking system interface


17.RS485 or RS232 network communication control up&down interface (no need to install communication module)


18. Anti-collision alarm signal interface.


19. Arm direction can be changed easily


20. Adjustable speed port (S curve adjustment)


21. High-strength precision cast steel, industry moving parts beyond the industry quality




Service for free
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.


Optional colors:
