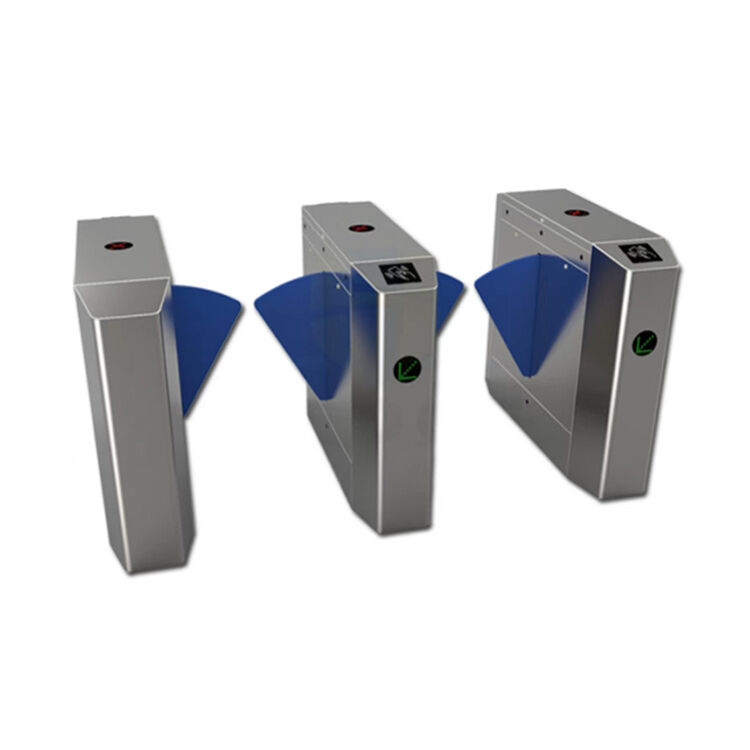

Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control
  • Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control
  • Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control
  • Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control
  • Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control
Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control

Face Recognition 100W SS304 Retractable Flap Barrier Turnstile for Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Size Of Housing:
1200*300*1000mm
Flap Opening / Closing Time:
1s
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Control Voltage:
DC24V
Unlock Time:
0.2s
Voltage Input:
100V To 240V
Open Gate Signal:
Dry Contact
Highlight:

Retractable Flap Barrier Turnstile

,

Face Recognition Flap Barrier Turnstile

,

100W Face Recognition Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Face Recognition 100W Retractable Flap Barrier Turnstile
Advanced face recognition access control system with integrated body temperature detection and retractable flap barrier technology for secure entry management.
Product Specifications
Model SN-FB01
Brand SINOMATIC
Size 1200*300*980mm
Arm Length 260mm
Material SS304 Stainless Steel
Input Voltage AC220±10%V, AC110±10%V
Motor Power 24V
Failure-free Operation 5 million cycles
Weight 130kg (two sets)
Traffic Speed 30 persons/minute
Flap Opening/Closing Time 1-2 seconds
Operating Temperature -20℃ to 60℃
Operating Humidity ≤90%
Working Environment Indoor and outdoor with shelter
Technical Features & Functions
  • Abnormal alarm function for user-friendly maintenance and operation
  • Multiple anti-clamping designs for maximum passenger safety protection
  • Automatic alarm and gate closure for illegal intrusion, trailing, and reverse entry
  • Dry contact signal input interface compatible with all access controllers
  • Comprehensive alarm system for illegal break-ins, tailgating, overtime passage, and equipment damage
  • Automatic access right cancellation and arm closure when passage isn't completed within permitted time
  • Emergency power-off safety feature with automatic arm opening
  • Optional counter to record people numbers for each lane
Structural & Electronic Parameters
Housing Material 304 grade stainless steel
Thickness 1.2 to 1.5mm
Arm Material Acrylic / Soft arm
Surface Treatment Laser cutting processing; precision welding
Lane Width 600mm
Passing Speed 35-50 people/minute
Open/Close Speed 0.2 seconds
Infrared Sensors 3 pairs
MCBF 5,000,000 cycles
Rotation Direction Single way or Bi-directional adjustable
Noise Level <55db
Relative Humidity 5% to 95%
Power Supply 110-220V/AC, 50/60HZ
Rated Power 100W
Input Signal Dry contact
Driving Motor Brushed motor
Mainboard Independent development patent mainboard
