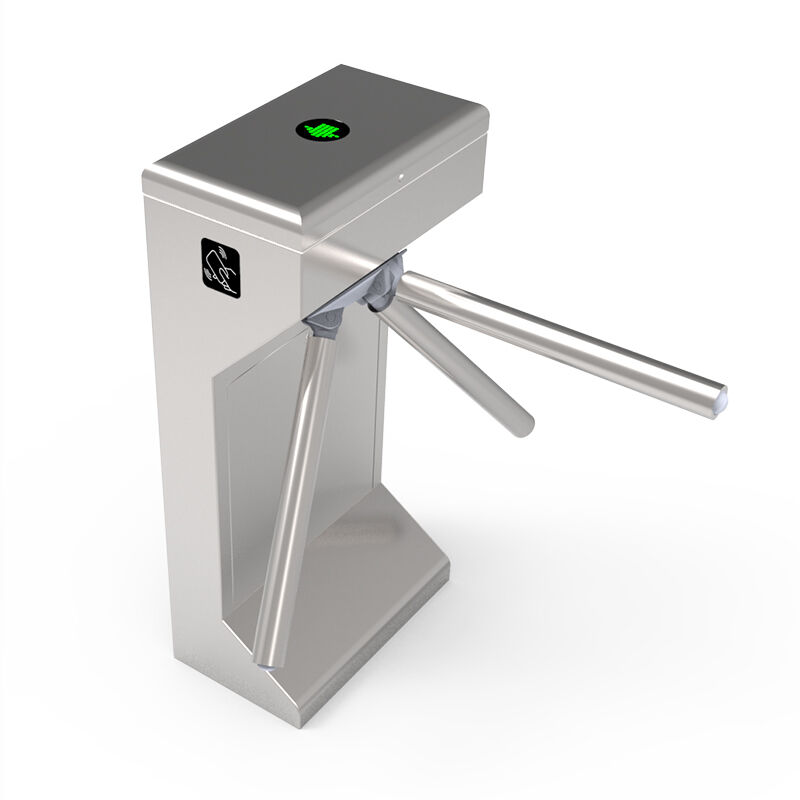

40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel
  • 40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel
  • 40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel

40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Material:
304 Stainless Steel
Length Of Rod:
510mm
Type:
Power Off Rod Fall Down Automatically. Manual Lift Up Rod When Power On
Application:
Indoor/outdoor With Tent
Thickness Of Housing:
1.2mm Or 1.5mm
Control Voltage:
DC24V
Input Voltage:
220V/110V ±10%
Control Direction:
Single Direction Or Bi-direction(optional)
Highlight:

Bi Direction Tripod Turnstile Gate

,

40W Tripod Turnstile Gate

,

Card Reader Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
,L/C,D/A,D/P,T/T,Western Union
Supply Ability
3,000pcs per month
Product Description
40W Bi-Directional Tripod Turnstile Gate With Card Reader
Wide Range Integration Smart Door Single Bi-Directional Tripod Turnstile Gate
The tripod turnstile is designed for both one-direction and bi-direction channel control applications. Ideal for government facilities, schools, hospitals, banks, clubs, stations, wharfs, and corporate enterprises seeking reliable access control solutions.
Product Overview
Tripod turnstiles provide compact and cost-effective entrance management solutions. Constructed from brushed stainless steel, these units offer robust, rigid construction with anti-rust properties for exceptional durability. Suitable for both indoor and outdoor installations, they seamlessly integrate with various access control systems including RFID devices, push buttons, fingerprint scanners, and biometric devices. In emergency situations, the turnstile arms automatically drop down to allow free passage when power is lost, making them ideal for high-traffic areas.
Technical Specifications
Model No. SN-TT01X
Framework Material 304 Stainless Steel
Dimension 480 * 280 * 980mm
Net Weight 40kg
Passage Width 550mm (Arm length: 500mm)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -20°C to 60°C
Operation Humidity 0 to 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-35 people per minute
LED Indicator Yes
Input Dry contact
Emergency Feature Automatic arm drop when power off
Key Features
  • Long-life performance with high operational dependability and fast response
  • Smooth system operation with low noise and no mechanical impact
  • Self-test function with automatic system restoration when powered on
  • Selectable single directional or bi-directional operation
  • Integrated LED indicator for status monitoring
  • Automatic reset function: arms lock automatically if passage isn't used within specified time (default 5 seconds)
  • Emergency power-off compliance with fire safety requirements - arms drop automatically during power loss
Access Control System Integration
40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel 0 40W Bi Directional Tripod Turnstile Gate with Card Reader in 304 Stainless Steel 1
