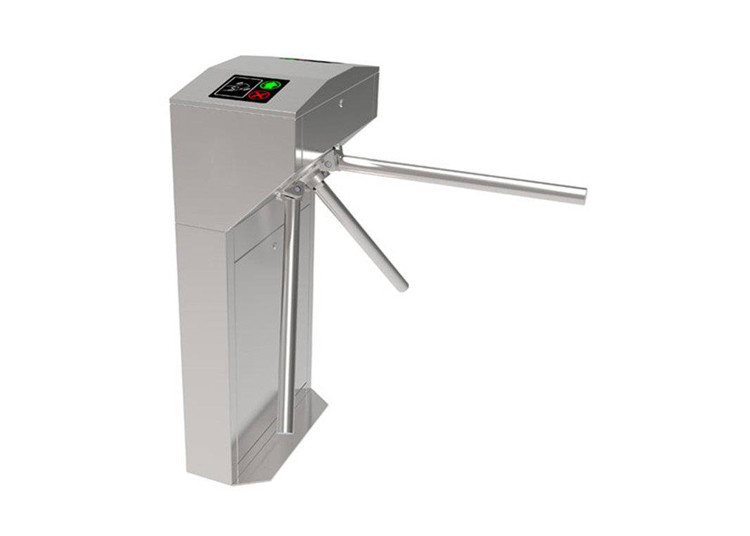

40W Bi Direction Tripod Turnstile Gate With Card Reader

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01X
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Material 304 Stainless Steel Length Of Rod 510mm
Type Power Off Rod Fall Down Automatically. Manual Lift Up Rod When Power On Application Indoor/outdoor With Tent
Thickness Of Housing 1.2mm Or 1.5mm Control Voltage DC24V
Input Voltage 220V/110V ±10% Control Direction Single Direction Or Bi-direction(optional)
High Light

Bi Direction Tripod Turnstile Gate

,

40W Tripod Turnstile Gate

,

Card Reader Pedestrian Turnstile Gate

Leave a Message
Product Description

Wide range integration smart door single bi-direction tripod turnstile gate with card reader



DESCRIPTION



Tripod turnstile is suitable for one-direction or bi-direction channel control, such as government, school, hospital, bank, club, station, wharf and enterprises etc.



Tripod turnstiles are compact and cost-effective entrance solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
Tripod turnstile is ideal for both indoor and outdoor settings.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
It is suitable for areas with high traffic.



Specifications of Tripod Turnstile Gate:



Model No. SN-TT01X
Framework Material 304 Stainless Steel
Dimension 480 * 280 * 980mm
Net Weight 40kg
Passage Width 550mm (Arm length: 500mm)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -20 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-35 people per minute
LED Indicator Yes
Input Dry contact
Emergency Automatic arm drop when power off







Features of Tripod Turnstile Gate:



*Long-life performance, high operation dependability and fast response.


*The whole system runs smoothly, low noise, no mechanical impact.


*Self-test function, when power on, system restoration automatic.


*Single directional or Bi-directional is selectable.


*LED indicator.


*Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.


*When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.
