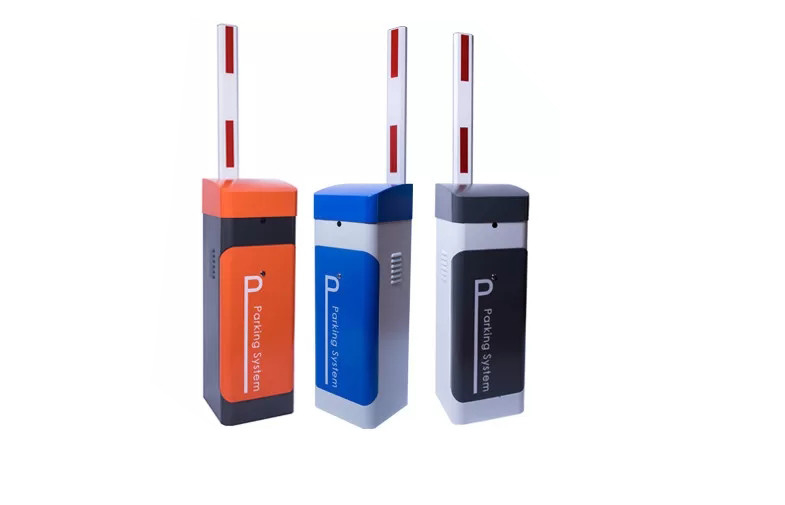

Aluminum Alloy 140W 6M Arm RFID Automatic Vehicle Gates
  • Aluminum Alloy 140W 6M Arm RFID Automatic Vehicle Gates
  • Aluminum Alloy 140W 6M Arm RFID Automatic Vehicle Gates
  • Aluminum Alloy 140W 6M Arm RFID Automatic Vehicle Gates

Aluminum Alloy 140W 6M Arm RFID Automatic Vehicle Gates

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG132-DC
Product Details
Remote Control Distance:
≤100m
Power Supply:
220V/110V ±10%/ DC24V
Frequency:
50/60HZ
Power:
140W
Time For Up/down:
1.5~6s (adjustable)
Protection Grade:
IP 54
Working Temperature:
-35℃~+85℃
Key Word:
Barrier Gate, Arm Barrier, Traffic Barrier
High Light:

6M Arm Automatic Vehicle Gates

,

RFID Automatic Vehicle Gates

,

Aluminum Alloy Entrance Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000 pcs per month
Product Description

DESCRIPTION



Barrier Gate controller -- variable frequency type, is the enhanced barrier control which speed can be adjusted. Adopting full remote control mode, with the open /stop/close wire control interface,counting interface, special encoder limit interface, loop detector interface, infrared interface, open limit,close limit output interface, communication interface.The remote control code is the learning code, and receiver module adopts external superheterodyne reception.



GENERAN FEATURES



1. Arm direction can be quickly interchanged

2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.

3. Arm automaticlly locking when power off, then open the barrier gate by motor wheel

4. Remote control to operate the barrier gate.

5. Auto-reverse when the boom meets obstruction.

6. Infrared photocells connector is available.

7. Loop detector connector is available.

8. Well-intergrated with car parking system equipment,with wire control(must be switch signal).

9. Connector for traffic light(AC220V,power less than 40W)

10. Offering dry contact signal for car parking system(COM,NC,NO)

11. Auto-delay when closing(adjustable)



Technical parameters



Working temperature(motor) -35℃~+85℃
Rated voltage DC24V
Running speed 1.5s-6s
Rated curren 8.58A
Rated power 140W
No-load speed 1850rpm
Rated speed 1400rpm
Output Power 56.8N.m
Relative humidity ≤90%
Remote control distance ≤100M(in the open place)
IP Degree IP54
Place of origin SHENZHEN CHINA









The parameter for selecting the balance tension spring



Arm Type The Length of arm Selection Spring

Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M>L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M>L≥3M (ø5.5x280)+(ø4.5x280)





FEATURES



1.Mechanical and electrical integration:quickly assembly,easy maintenance.
2.Molding production:highprecision,fast efficiency and guaranteed quality.
3.Worm-gear secondary variable speed transmission:motor wheel design,gate opening by manually when power off,no blocking, no oil leakage,large torque,low noise,can normally operation at the temperature of minus 45 degrees,ets.
4.DC brushless motor desgin:low consumption, high efficiency,no overheat, wide speed adjustment.
5.Hall limit:Automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.
6.Curved triple connecting rod structure,easy to adjust
7.Arm direction quickly interchanged:interchanged according to different directions on construction site,reduce inventory and capital pressure.
8.Special DC brushless controller:use integrated chip dirve, fast processing speed, large memory, powerful function;24V low voltage power supply, adapt to global voltage.



PACKING DETAILS



Packing Size 1030(H)*380(L)*450(W) mm
Weight 50KG for Anti-Crash Vehicle Barrier Gate, Vehicle Barrier System With
Packing detials The normal package is paper carton.If wooden box is needed to export overboard,the wooden box will be fumigated.Can also use pallet.
