Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG121-DC |
Mechanical and electrical integrated quick assembling DC brushless motor vehicle gate barrier systems
Why DC motor barrier gate?
| 1.Mechanical and electrical integration: quickly assembly, easy maintenance |
| 2.DC brushless motor design: Low consumption, high efficiency, no overheat, wide speed adjustment. |
| 3.Molding production: high precision, fast efficiency, and guaranteed quality. |
| 4.Worm-gear secondary variable speed transmission: motor wheel design, gate opening by manually when power off, no blacking, no oil leakage, large torque. low noise, can normally operate at the temperature of minus 45 degrees, etc. |
Technical parameters
1. Working temperature(motor): -35℃~+85℃
2.Rated voltage: DC24V
3.Running speed:1.5s-8s
4. Rated current: 8.58A
5. Rated power: 140W
6. No-load speed:1850rpm
7. Rated speed:1400rpm
8. Output Power: 56.8N.m
9. Relative humidity: ≤90%
10. Remote control distance: ≤100M( in the open place)
11. IP Degree:IP54
12. Max length of arm: 6M
Functions
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
Installation instructions
1. Fixing the barrier controller inside the machine case.
2. Refer to the controller wiring connections,fixed the wires.(note:Disconnect power
before installation or repair)
3. After checked and confirmed the connection is reliable, close the control box.
4. Machine control installation: Place the desktop remote on guard room’s desk or fixed on the wall,
and plug in the power.
Arm type and speed
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S | ||
| 4.5M>L≥3M | 3S | ||
| 90 degree folding arm | L≤5M | 5S | |
| 180 degree folding arm | L≤5M | 5S | |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S | ||
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
Technical parameters
| Working temperature(motor) | -35℃~+85℃ |
| Rated voltage | DC24V |
| Running speed | 1.5s-6s |
| Rated curren | 8.58A |
| Rated power | 140W |
| No-load speed | 1850rpm |
| Rated speed | 1400rpm |
| Output Power | 56.8N.m |
| Relative humidity | ≤90% |
| Remote control distance | ≤100M(in the open place) |
| IP Degree | IP54 |
| Place of origin | SHENZHEN CHINA |

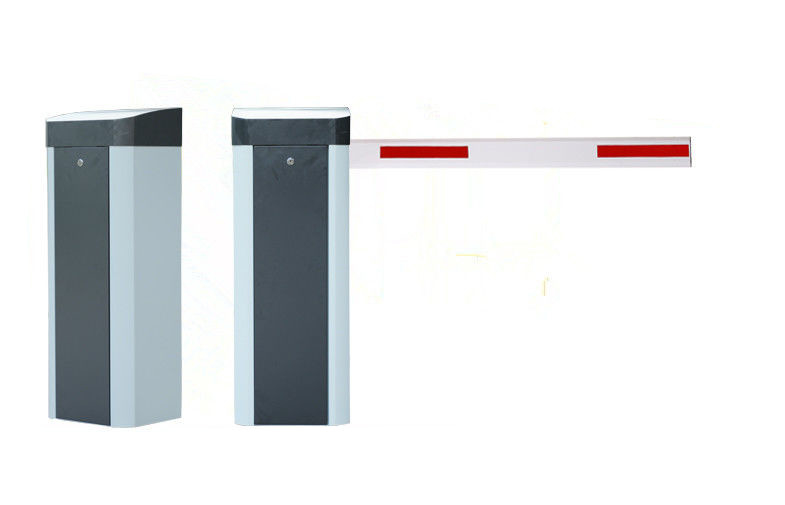

PRODUC PHOTO
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea or by air. You can also choose your own shipping forwarder.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package optional
