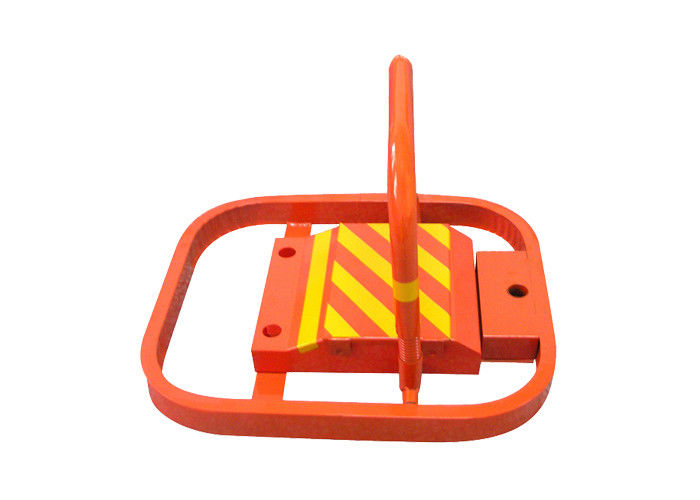

Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking
  • Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking
  • Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking
  • Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking

Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-O
Product Details
Up Size:
590*500*380mm
Up Height:
380mm
Down Size:
590*500*85mm
Down Height:
85mm
Net Weight:
12KG
Gross Weight:
13.2KG
Voltage:
12V DC
Running Time:
5-6 Sec
Highlight:

14A Parking Space Lock

,

Waterproof Parking Space Lock

,

380mm Height Car Park Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
3,000 pcs per month
Product Description
Waterproof Auto Sensor 14A 380mm Height Parking Space Lock
12kg net weight intelligent waterproof remote control auto sensor parking space lock
Product Overview
The BW-O automatic parking lock is designed to protect your parking space from unauthorized use. This robust system stands guard while you're away, ensuring your designated spot remains available. Featuring a built-in 12V rechargeable battery with approximately 8-hour charging time, the unit operates wire-free with all electronic components securely housed within the locked safety control box.
Key Features & Functions
  • Powered by imported low-speed maintenance-free DC motor with no mechanical reduction gear for quiet operation
  • Built-in spring balance mechanism with screw transmission for light load operation
  • Durable imported baking paint finish resistant to fading with pressure-resistant design capable of withstanding 5 tons
  • High-sensitivity short circuit switch with 1 million cycle service life
  • Intelligent microprocessor and IC circuit control for low power consumption and reliable performance
  • Delay locking/unlocking functions with overload and over-voltage circuit protection and resistance alarm
  • Automatic reverse function when encountering external resistance without affecting control system
  • Screw-integrated construction for easy disassembly and maintenance
  • Front and rear operation modes with waterproof and ultra-low profile design
  • Spring-connected swing arm providing anti-collision protection
Technical Specifications
Parameter Specification
Product Name O Shape Parking Lock
Model SN-BW-O
Dimension (Arm Down) 590×500×85mm
Dimension (Arm Up) 590×500×380mm
Remote Control Distance ≤30m
Maximum Control Current 14A
Blackout Delay Time 18s
Up/Down Operation Time 5s to 6s
Working Voltage DC 12V
Net Weight 12KG
Gross Weight 13.5KG
Packing Dimension 63×53×12cm
Installation Procedure
  1. Clean installation surface with dishwashing liquid in warm water and allow to dry completely, removing all dust, oil, and grease
  2. Position the parking lock with the sign facing the entry point, centered left to right and 0-100mm from the front entry
  3. Mark ground through base holes and drill 3 holes 50mm deep for tamper-proof bolts
  4. Clean dust from drilled holes and surrounding area
  5. Apply liquid nails or silicone in an "S" pattern to the base underside
  6. Position unit over holes, insert tamper-proof bolts, and tighten securely with large screwdriver
  7. Connect battery and remote control to matching black locating sockets
  8. Close and lock the battery box lid - unit is now ready for operation
Operation Instructions
Use the remote control's up button to raise the parking lock and the bottom button to lower it. When battery charge is low, an audible alarm will sound. To recharge, open the control box, disconnect the battery, and connect to the supplied charger plugged into 220/240V power for approximately 12 hours. A fully charged battery provides approximately 300 operations or 3 months of typical use. For emergency situations when the unit is raised and non-operational, use the supplied hex key to open the main box, undo the screw, release the pin, and lay the unit down manually.
Installation Reference
Waterproof 380mm Height 14A Automatic Parking Space Lock for Secure Car Parking 0
