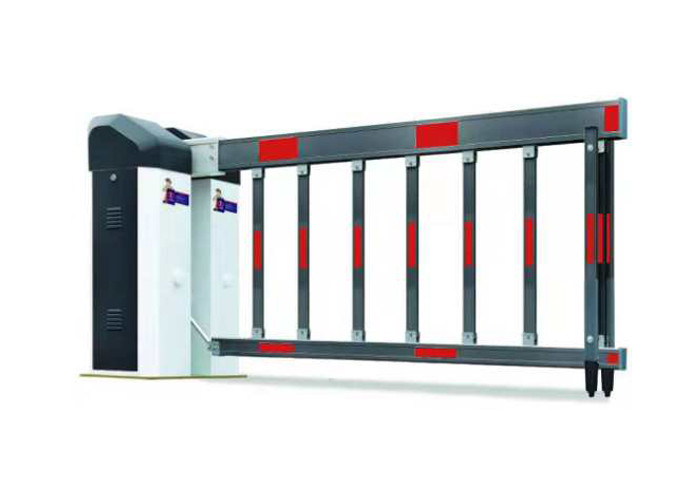

220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ABBG01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Brand SINOMATIC Power Input AC220/AC110 50/60HZ
Rated Power 250W Opening/Closing Time 9s
Box Weight About 110kg Box Dimension 457*686*1275mm
IP Rate IP44 Arm Lenght Max 6m
Arm Height 1168mm
High Light

6M Arm Airborne Barrier Gate

,

250W Airborne Barrier Gate

,

9s Entrance Barrier Gate

Leave a Message
Product Description

CAR PARK MANAGEMENT SYSTEM 220V AC MOTOR 6 METER ARM AUTOMATIC AIRBORNE BARRIER GATE





AIRBORNE BARRIER GATE SPECIFICATIONS



Power input AC220/AC110 50/60HZ
Rated power 250W
Opening/Closing time 9s
Box weight 110kg
Box dimension 457*686*1275mm
IP rate IP44
Boom length 1m to 6m
Boom height 1168mm
Remote distance ≤30m
Working temperature -30℃~+80℃
Humidity ≤95%





AIRBORNE BARRIER GATE FEATURES AND FUNCTIONS



1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.



2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.



3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.



4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.



5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.



6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.



7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.



8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.



9. The system uses a standard electrical interface externally, which can be easily attached to other systems.



10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.



AIRBORNE BARRIER GATE DETAILS



220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate 0

220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate 1

220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate 2





AIRBORNE BARRIER GATE DIMENSION

220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate 3

AIRBORNE BARRIER GATE APPLICATION

220v Ac Motor 250W 6M Arm 9s Airborne Barrier Gate 4
