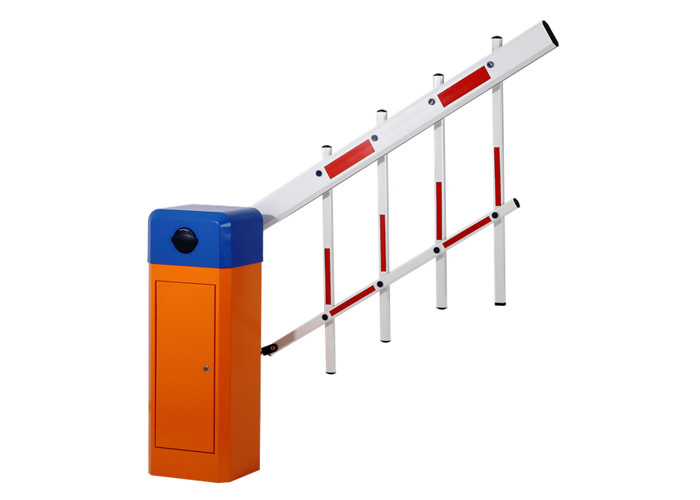

220V AC 6m Arm 120W Carbon Steel Boom Barrier Gate
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG102 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 3,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | SINOMATIC | Motor | AC Motor |
|---|---|---|---|
| Material Thickness | 2mm Carbon Steel | Arm Length | Max 6m |
| Boom Type | Straight, Folding And Fencing | Warranty | 2 Year |
| Speed | 1s, 1.8s, 3s, 6s | Voltage | 220V/110V |
| Rated Power | 120W | Control Mode | Remote Control, Wire Control |
| High Light | 120W Boom Barrier Gate,6m Arm Boom Barrier Gate,Carbon Steel Lifting Barrier Gate |
||
Product Description
220V AC Copper Motor Electric Boom Gate Barrier For Parking Management System
ABOUT THE SN-BG102 BARRIER GATE
This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
TECHNICIAL SPECIFICATION
| Product Name | Traffic Barrier Boom Gate/Parking Barrier Gate |
| Model Nuber | SN-BG102 |
| Operation Time | 1s,1.8s,3s,6s |
| Arm Type | Straight arm,fence arm,folding arm |
| Rating Voltage | AC220V/110V±10%,50/60HZ |
| Power Supply | 120W |
| Size | 320*280*920mm(L*W*H) |
| Material | 2.0mm thickness cold roll steel sheet |
| Remote Control Distance | ≥30meters |
| Working Temperature | -35℃ to +75℃ |
| Packing |
1030*380*450mm,with seven layers carton size inside with air bubble film for protection |
| Delivery |
By sea:big order(more than 100 sets) cheap,suggested By Air or Express: sample order,quick and cheap,suggested |
| Payment | T/T,Western Union,Moneygram, Credit card,Cash(according to your requirement) |
| MOQ | 1 set |
FUNCTIONS & FEATURES
1. For security, the barrier will automatically go back when meet obstacles during closing.
2. Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.
3. All the operation process is soft without any noise and shaking.
4. Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
5. Green light and red light are used inside for indication the position of the beam.
6. Manual release device to operate the barrier when power failure.
7. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.
8. Motor cooling fan to avoid the over-heating possibility.
9. Auto closing realization through menu setting on the control panel.
10.Wire control, remote control optional
11 Infrared protection (requires correlation infrared device)
MECHANISM
DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE
| Model No. (BG) | Open/Close Speed | Max Boom Length | Boom Type |
| 102-16 | 6 sec | 6m | straight boom |
| 102-13 | 3 sec | 4.5m | straight boom |
| 102-11 | 1 sec | 3m | straight boom |
| 120-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 102-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 102-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 102-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 102-46 | 6 sec | 4.5m | Two-level, fence boom |
| 102-56 | 6 sec | 4m | Three-level, fence boom |
PRODUCT DETAILS
OUR FACTORY
FAQ
Q: What's your monthly production capacity for barrier gate?
A: 1000 units.
Q: What is the warranty for the machine?
A: 12 months.
Q: When will you make the delivery?
A: In general, Regular products: 2-7 days.
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: Full payment for sample. 30% deposit, 70% before delivery for bulk order.
