RS485 6m 24GHz Parking Lot Occupancy Barrier Gate Radar Sensor
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE |
| Model Number | TRD-201 |
| Minimum Order Quantity | Sample order accepted |
| Price | US$50~US$55 |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 3-7 working days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 3000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detect Distance | 6m (adjustable) | Working Voltage | DC 12V |
|---|---|---|---|
| Working Frequency | 24Ghz | Detecting Object | Person, Vehicle |
| Sensitivity | Adjustable | Protection Rate | IP65 |
| High Light | RS485 Parking Lot Occupancy Gate,6m Parking Lot Occupancy Gate,24GHz Traffic Loop Detector |
||
Product Description
Product features
- Low cost,easy operation,with waterproof case;
- Suitable for been directly installed in the open air;
- Range measurement distance from 1m to 6m, it's adjustable.
Applications of radar solutions:
-Gate barrier radar (replaces vehicle loop detectors);
-Parking lot occupancy detection;
-Road traffic safety monitoring (traffic signal controls, radar traffic counters, traffic classification);
-Security applications.
Technical Specification
| Product name | Radar detector |
| Working frequqncy | 24GHz |
| Working voltage | DC 12v |
| Detecting object | Person, vehicle |
| Background threshold | Auto or manual |
| Sensitivity | adjustable |
| Detect distance | 6m(adjustable) |
| Dimension | 115mm x 85mm x 31.2mm |
| Communication port | RS485, on and off signal |
| Dimension | 115x85x31.2mm |
| Weight | 85g |
| Protection | IP65 |

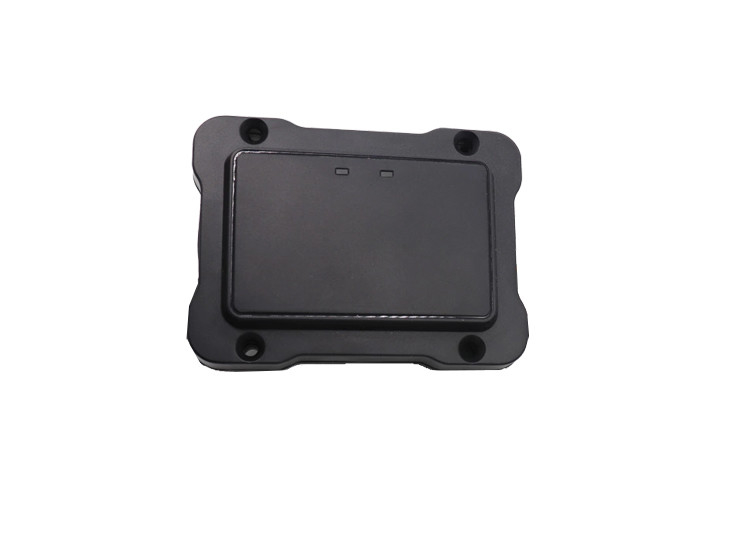

Product photo
Installation
1. Install on barrier gate
H=65CM, fixed radar sensor on barrier. Radar connects with DC12V power input, analog on and
off signal. Then power on.
2. Install on holder
Confirm the holder position, the holder must install at alongside of barrier. Fix radar at 65cm height
from ground. Radar connects with DC12V power input, analog on and off signal. Then power on.
Wiring
Brown color wire connects to 12V+, blue color wire connects to 12V-, green color wire connects to
loop detector port on barrier control board, yellow color wire connects to OV on barrier control board.
Adjustment
Note: Default detect road width is 3m, People and cars should be distinguished. There must be no
obstacles in the surrounding area, and people should not exceed the radar level.
Connect the equipment to the relevant line sequence, power on, short the blue and black wires for
1-2 seconds, and the equipment will enter the automatic background threshold collection function
(two LED display lights will start flashing, disconnect the blue and black wires). Before setting the
automatic background threshold, make sure there are no pedestrians or other interference in front
of the barrier arm.
