Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Material:
SS304
Diameter:
219mm
Height:
600mm
Thickness:
6mm
Up Time:
3s To 6s Adjustable
Down Time:
3s To 6s Adjustable
Min. Loading:
100T
Weight:
150KG±
Power:
300W Integrated
Working Temperature:
-65℃~+75℃
High Light:

automatic retractable bollards

,

automatic driveway bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Advanced customization Lifting column surface anti-rust retractable rising bollards made in China



INTRODUCTION



This is a high-quality automatic bollard which is used widely to protect security areas from vehicle intrusion.

It is an ideal solution for entrance with high security requirements. Raising time of the bollard is 3 seconds.

Even if the intrusion is from high tonnage vehicle in high speed, the bollard will stop the vehicle easily because

it is so solid that the vehicle will break after impact instead.



ADVANTAGES

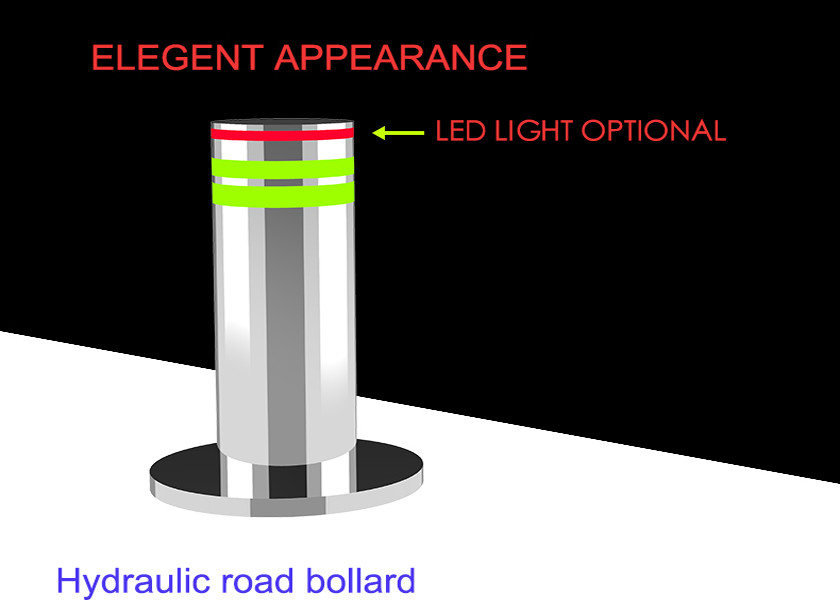

There are also some extra safety precautions in the design of the bollard. The LED bar on the bollard can

effectively  avoid accidents caused by poor vision of driver at night. In case of power failure, the bollard can

be lowered manually. Equipped with PLC (Programmable Logic Controller), various control methods can be

achieved easily, such as biometric readers, remote control and push button.



APPLICATIONS



The bollard is commonly found in customs, ports, prisons and military bases where traffic guidance is needed

to protect people and property. This product provides ideal access control in areas mentioned above and raises

the level of security.



Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface 0



PRODUCT PARAMETERS



Product Name Electro-hydraulic integration rising bollards (Cylinder)
Model No. SN-HRB01
Power supply 220V
Operating Temperature -35℃ ~ +75℃
Power 1.5KW/2.2KW/3.7KW
Protection level ≥IP68
Storage environment -10℃~65℃,Rainproof, moisture proof and dustproof
Diameter ≥219mm
Material 304 stainless steel
Application Government agencies,School,Apartment Block Access



Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface 1

FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting



PRODUCT DETAILS

Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface 2



CRASH TEST

Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface 3

CASE REFERENCES

Anti Rust Retractable Integrated Rising Bollards Customization Lifting Column Surface 4



Troubleshooting

  • The control box always trips

The wiring may be damaged or influent, and it is necessary to check the wiring in time.

  • The remote control fails

If the wireless remote control fails, but the manual button works fine, you can try to replace the
battery of the remote. If the battery is replaced but still not working,maybe that the receiver is
faulty. Please contact us to replace the receiver.

  • The bollards are lowering automatically when rising.

If the bollards in the raised state automatically descends, then the problem may be on the
mechanism or the Pressure maintaining valve.
The mechanism has less oil or it is damaged: The solution is to unfix the screws on the bollard
flange panel and pull the internal mechanism up to add hydraulic oil. If the fault still occurs after
adding the hydraulic oil, you need to contact the us to replace the mechanism.
The pressure valve cannot keep pressure. This maybe caused by the problem of the rubber circle.
So it is releasing pressure. Please contact us to replace the valve.

  • The LED light is malfunction

If all the LEDs on the bollards are not on, this maybe the wiring problem. Please check the wiring.
If only one of the LED is not on, that means the LED strip is broken.

  • The bollards cannot fully up or down

If the bollards are not operating for a while, there maybe dust and sand penetrated inside the
bollard. So the it is running slowly. After pre-set 3s, it will stop in half-way. You need to do the
cleaning.
