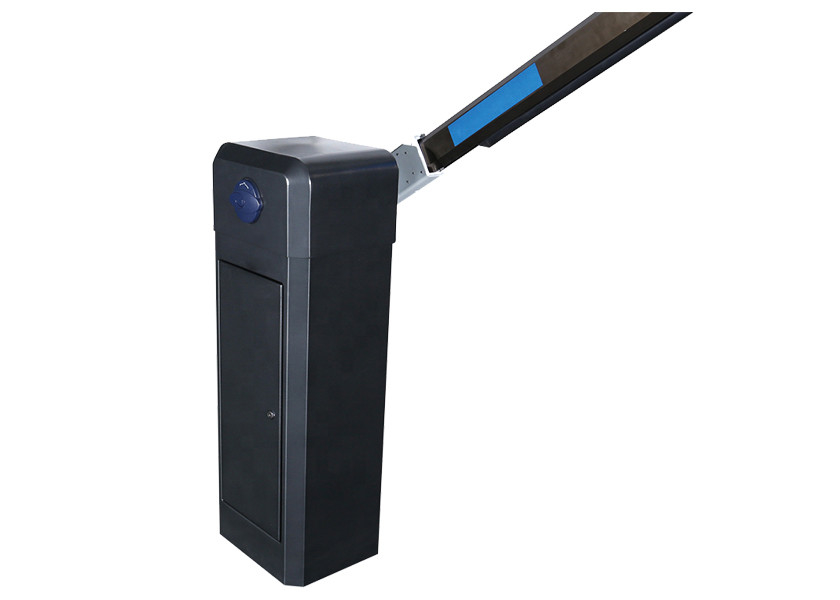

LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom

  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
  • LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SINOMATIC Motor AC Motor
Material Thickness 2mm Arm Length 3m To 6m
Boom Type Straight, Folding And Fencing Are Available Warranty 2 Year
Speed 1s, 1.8s, 3s, 6s Voltage 220V/110V
Rated Power 120W Control Mode Remote Control, Wire Control
High Light

Straight Boom Automatic Barrier Gate

,

6m Arm Automatic Barrier Gate

,

120W Parking Barrier Gate
Leave a Message
Product Description

3M-6M Arm LED Light Barrier Gate Automatically Close / Open Boom Gate



ABOUT THE SN-BG102 BARRIER GATE



This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.



BARRIER GATE MECHANISM



LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom 0



DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE



Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom



PRODUCT DETAILS

LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom 1



TECHNICIAL SPECIFICATION



Open/Close time 1s, 1.8s, 3s,6s depends on the arm length
Arm Length 3m-6m
Working Temperature -35℃ to +75℃
MTBF >5million times
Power Supply

220V±10 % 50/60HZ

110V±10 % 50/60HZ
Rated Power 120W
Related Humidity ≤90%
Remote Control Distance >30M
Net Weight 55KG

































1.Model : BG-102

2.Running time: 1s, 1.8s, 3s, 6s

3.Boom type: straight, folding, fence

4.Max Boom length: 3m, 4.5m, 6m

5.Boom dimension (WxH): 45x80mm

6.Boom weight: 3kg, 4.5kg, 6kg

7.Voltage: 220V ± 10%,110V ± 10%

8.Frequency: 50/60Hz

9.Motor voltage: 220V/110V

10.Power: 120W

11.Working temperature: -40°c~75°c

12.Protection grade: IP54





FUNCTIONS & FEATURES



1. For security, the barrier will automatically go back when meet obstacles during closing.



2. Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.



3. All the operation process is soft without any noise and shaking.



4. Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.



5. Green light and red light are used inside for indication the position of the beam.



6. Manual release device to operate the barrier when power failure.



7. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.



8. Motor cooling fan to avoid the over-heating possibility.



9. Auto closing realization through menu setting on the control panel.



10.Wire control, remote control optional



11 Infrared protection (requires correlation infrared device)



LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom 2



OUR FACTORY



LED Light Automatic Barrier Gate 3M-6M Arm 120W Straight Boom 3



FAQ



Q: What's your company monthly production capacity for barrier gate?

A: 1000 units.

Q: What is the warranty for the machine?

A: 12 months.

Q: When will you make the delivery?

A: In general, Regular products: 2-7 days.

Q: How does your factory control the quality?

A: Quality controlling from the beginning to the ending.

Q: What is your MOQ?

A: Any quantity is acceptable.

Q: Payment term?

A: 30% deposit, 70% before delivery
