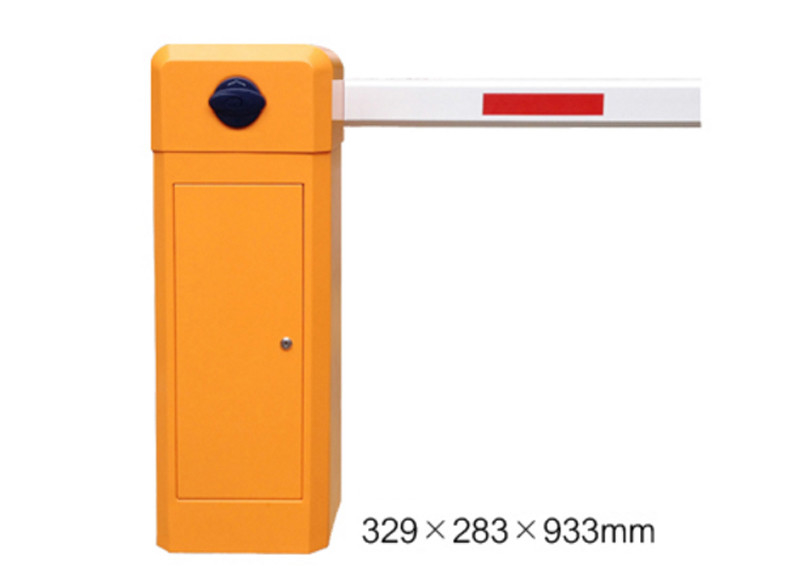

Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W

  • Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W
  • Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W
  • Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W
  • Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 3,000pcs per month
Product Details
Color Yellow/orange/blue/grey/white/red/green/golden Thickness Of Housing 2.0 Mm Mild Steel
Surface Finish Powder Coating Arm Length Standard 3m To 6m
Boom Type Straight, Folding And Fencing Are Available Warranty 2 Year
Speed 1s, 1.8s, 3s, 6s Voltage 220V/110V
Package Carton Rated Power 120W
High Light

Die Casting Entrance Barrier Gate

,

Alloy Motor Entrance Barrier Gate

,

120W Parking Barrier Gate
Leave a Message
Product Description

Die-casting aluminum alloy motor heavy duty 5 million operation entrance barrier gate



ABOUT THE SN-BG102 BARRIER GATE



The SN-BG102 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.









DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE



Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom





TECHNICIAL SPECIFICATION



Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 55kgs (without boom)
Arm Speed 1s, 1.8s, 3s, 6s
Max boom length 6 meters



1.Model (BG): 102-11, 102-13, 102-16

2.Running time: 1s, 1.8s, 3s, 6s

3.Boom type: straight, folding, fence

4.Max Boom length: 3m, 4.5m, 6m

5.Boom dimension (WxH): 45x80mm

6.Boom weight: 3kg, 4.5kg, 6kg

7.Voltage: 220V ± 10%,110V ± 10%

8.Frequency: 50/60Hz

9.Motor voltage: 220V/110V

10.Power: 120W

11.Working temperature: -40°c~75°c

12.Protection grade: IP44



PRODUCT MECHANISM

Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W 0

Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W 1



CONTROL BOARD

Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W 2



FUNCTIONS & FEATURES



1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 Hz/433 Hz)
12) RS485 Communication module (optional).



PRODUCT APPLICATION



Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W 3





OUR FACTORY



Heavy Duty Entrance Barrier Gate Die Casting Aluminum Alloy Motor 120W 4



FAQ



Q: What's the monthly production capacity for barrier gate?

A: 1000 units.

Q: What is the warranty for the machine?

A: 12 months.

Q: When will you make the delivery?

A: In general, Regular products: 2-7 days.

Q: How does your factory control the quality?

A: Quality controlling from the beginning to the ending.

Q: What is your MOQ?

A: Any quantity is acceptable.

Q: Payment term?

A: 30% deposit, 70% before delivery
