100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating
  • 100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating
  • 100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating
  • 100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating
100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating

100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-S10
Product Details
Motor Rated Power:
100w
Duty Cycle:
100%
Input Voltage:
220V/110V ±10%, DC24V/12V
Frequency:
50Hz/60Hz
IP Rate:
IP54
Drive System:
DC Brushless Servo Motor
Remote Control Distance:
Max 50 Mtr
Service Lift:
5 Million Times
Arm Type:
Round Arm, Octagonal Arm
Highlight:

60Hz Automatic Vehicle Barrier

,

IP54 Automatic Vehicle Barrier

,

Brushless Motor Automatic Vehicle Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description

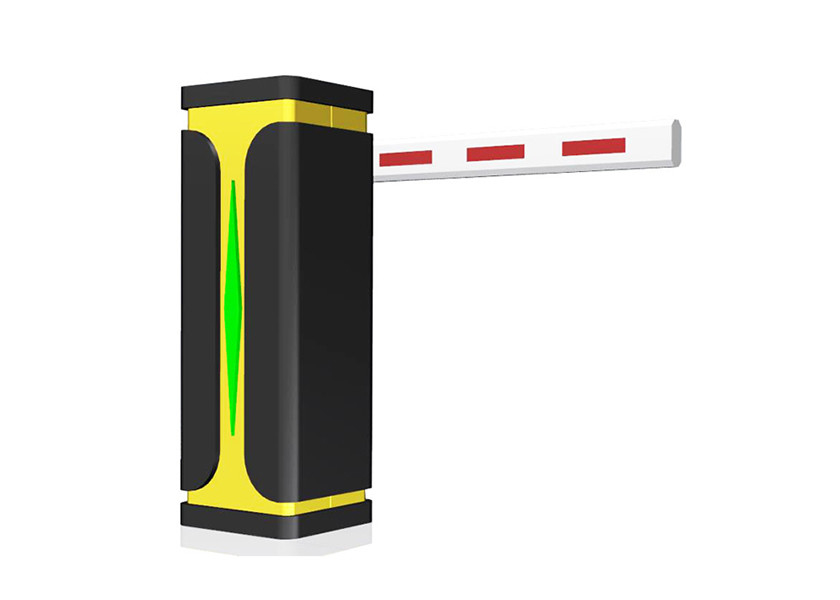

60Hz Automatic Vehicle Barrier Brushless Motor Straight Fencing Folding Arm
Automatic vehicle barrier servo motor straight/fencing/folding arm parking barrier gate
Product Description
SINOMATIC S10 DC Brush-less Servo motorized barrier gate features newly designed, maintenance-free construction with exclusive SFMCU Micro-drive unit. This system offers 100% more torque, 100% duty cycle, and represents the fastest toll barriers available with an opening time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.
Product Specifications
Open/Close Time0.6~6 sec. adjustable
Boom ArmMax. 6 mtr 45×100mm aluminum alloy octagonal boom
Max. 3 mtr round boom with foam
Power SupplyAC 220/110V±10%, 50/60HZ
Motor100W DC24V brushless servo torque motor
MTBF10 Million Cycles
Remote Distance30~50 mtr
Communication InterfaceRS-485 (Optional)
Housing Material2mm cold-roller sheet
Housing PaintingPower coating, 10 years without rust, shedding and fading
Protection RatingIP 54
G.W45KG (Without boom)
Operating Temperature-35°C to 70°C
Humidity10%-95%
Functions & Features
  • Heavy-duty and simple-design housing
  • Maintenance Free - Mostly no smaller parts need maintenance, service life should reach 5 million times
  • Simplified design for easy installation and maintenance reduces labor costs
  • Auto-Recovery - When power is off, barrier arm can be lifted manually for free exit. When power is restored, barrier gate automatically returns to normal operating position
  • Speed Adjustable - DC servo barrier gate allows setting opening and closing speed according to requirements. Shorter arm enables faster speed settings
  • Safety of Vehicle - Anti-hit by Loop Detector (Optional)
  • Safety of Vehicle - Anti-hit by IR Photocell (Optional)
  • User Friendly - Motorized arms provide comfortable passage while maintaining high level and high density of car flow management, such as in toll gates
  • Emergency Interface - Control board has emergency interface for emergency signals. Barrier will open when signal is active
  • Easy Integration - Access Reader, Push button, or remote controller can trigger barrier gate opening via simple dry contact signal. After delay timer elapses, barrier gate closes automatically (optional function)
Production Advantages
100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating 0
Packing Information
100W DC Brushless Servo Motor Automatic Barrier Gate with 0.6s Fast Opening Speed and IP54 Protection Rating 1
Standard packing is carton package. For bulk orders, pallet packaging is available. Wooden packaging for barrier gate and arm is also available with additional charges.
