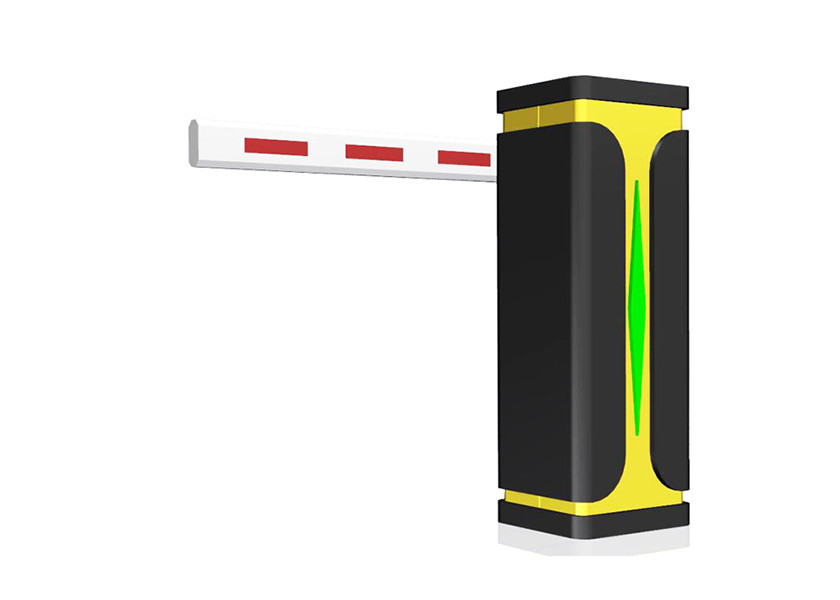

Remote Control Automatic Barrier Gate Mild Steel 100w With DC Servo Motor

  • Remote Control Automatic Barrier Gate Mild Steel 100w With DC Servo Motor
  • Remote Control Automatic Barrier Gate Mild Steel 100w With DC Servo Motor
  • Remote Control Automatic Barrier Gate Mild Steel 100w With DC Servo Motor
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-S10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Opening Speed 0.6s, 0.9s (both Can Adjust To 6s) Motor Rated Power 100w
Duty Cycle 100% Input Voltage 220V/110V ±10%, DC24V/12V
Frequency 50Hz/60Hz IP Rate IP54
Drive System DC Brush-less Servo Motor Housing Material Mild Steel
Material Thickness 2mm Housing Color Yellow/black, White Black
High Light

DC Servo Automatic Barrier Gate

,

Automatic Barrier Gate Mild Steel

,

100w Automatic Vehicle Barrier
Leave a Message
Product Description

Automatic remote control fast speed barrier gate with DC servo motor



PRODUCT DESCRIPTION



This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented

toll stations providing great reliability and sustainability as well as comprehensive functionality. This Barrier use

innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality

andreliability for years to come. The barrier has been lab tested for more than 10 millions opening /closing and

still without any degrade in performance.



PRODUCT SPECIFICATIONS



Open/close time
0.6~6 sec. adjustable
Boom Arm
Max. 6mtr 45×100mm aluminum alloy octagonal boom
Max. 3m round boom with foam
Power Supply
AC 220/110V±10%,50/60HZ
Motor
100W DC24V brushless servo torque motor
Duty Cycle
100%
MTBF
(Meantime Before Failuare)
5 Million Cycles
Remote distance
20~50mtr.



PRODUCT COLOR



1. Yellow/black



2. White/black



3. Other color available.

    Besides the above standard color, we can also make other colors for bulk order, please check with

    our sales for the colors that we can make.





FUNCTIONS & FEATURES



1. Quite smooth moving with Max. 6m boom



2. NO SENSOR&LIMIT SWITCH

   Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.


3. 0.6~6 sec. speed adjustable



4. MAINTENENCE FREE

DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

brush in a certain time.


5.. Different types of boom is available, like stranght boom, folding boom, fencing boom



6. 24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, Open

and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.



7. Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake



8. AUTO-REVERSE FUNCTION

When arm falling and meets obstacles, arm will auto reverse to prevent further damages.


9. Simplified design, easy installation and maintenance reduces your labor cost



10. MULTIPLE INTERFACES
