Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TK01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material A3 Steel IP Rate IP 68
Painted Color Yellow/black (default) Min. Loading 50T
Lenght 3m To 6m Power Supply 220V/ 110V
Lifting Time 1s To 2s Dropping Time 1s To 2s
Blade Height 150mm Feature Anti-corrosion
High Light

Electro Mechanical Tyre Killer


6m Length Tyre Killer


Single Phase Traffic Spikes Barrier

Leave a Message
Product Description

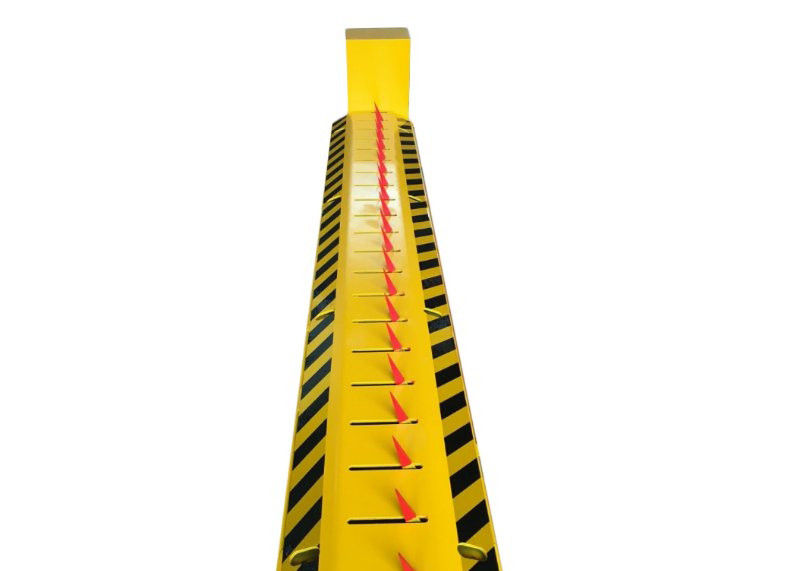

Automatic Roadway Safety Bury-free easy installation single phase motor 6 meter Electro-mechanical Tyre Killer




Electro-mechanical tyre killer SN-TK01 is one of the highest security vehicle access control systems in

which a vehicle without permission cannot enter. Tyres of the unpermitted vehicle splits open immediately,

therefore the vehicle moves only a few more meters and is stopped. Jaws of the tire killer move all together.

Electro drive unit is placed to one end of the tire killer, it stands above the ground level and is a complete

assembly with the body. In this way, both smooth transmission of motion and minimum effect of external

factors are achieved.





Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length 0

Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length 1




1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235

    carbon steel with strong load-bearing and destructive power.The structure is firm and durable.

2. IP68 military protection standard.

3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and

    lower cycles, taking much less time and lower level of noise to operate.Typical operating

    (opening /closing) time is 1-2 seconds.

4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of

    operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption

    and high reliability.

5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,

    the controller is available to work 30 meters far away from the blocker device(depends on the radio

    communication environment on site).

6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.


7. Convenient maintenance. It is easy to check, test and fix the problem.

8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be

    integrated to the system very easily.


9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm system,

    traffic light) in order to achieve an access control check-point at the highest level of security.

10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built

    in an almost infinite range of thickness and length to suit any roadway or level of security.






Items Specs
Application range Intersection safe protection in main area
Material Q235 steel/A3 steel
Surface treatment Paint with reflective stripe
Standard color Black and yellow(default)
Length 3000mm
Width 520mm
Height from ground 72mm
Max weight capacity 80T
Blade height 150mm
Blade thickness 10mm
Operation mode Electromechanical
Working environment -40℃~+70℃
Control mode Short range wireless remote control/drive-by-wire
Control distance ≤100M
Up/Down speed 1s to 2s
Voltage 220V/110V




Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length 2




Electro Mechanical Tyre Killer Automatic Single Phase Motor 6m Length 3



Q1. What is your terms of payment?

A: T/T, E-checking, West Union, Credit card etc. 50% deposit, and 50% before delivery.


Q2. How about your delivery time?

A: Generally, it takes 5 to 7 days after receiving your advance payment for sameple. The specific delivery time depends on the customized requirements and the order quantity.


Q3. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q4. What is your sample policy?

A: We can supply the sample but need to charge.


Q5.How about your after-sale service and warranty?

A:We provide lifelong after-sale service and technical support, one year warranty. Please always feel free to contact us if you meet any problems


Q6.How to install and maintain the equipment?

A:Our professional engineer will help provide draft construction design according to your specific on site condition. Related installation video show can also be provided.
