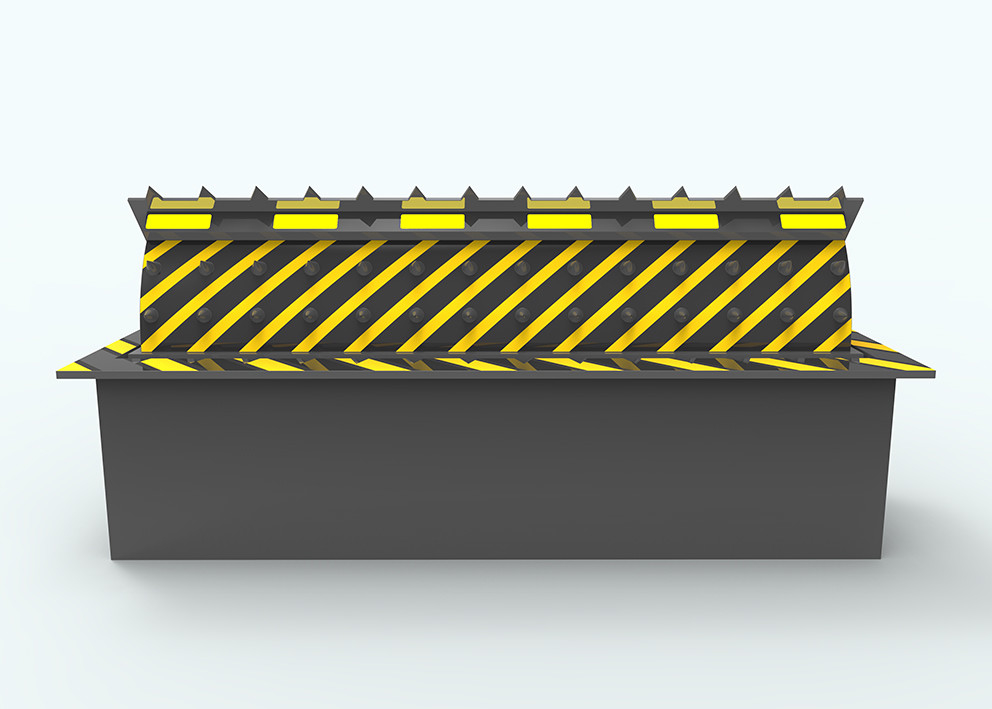

PLC programming command control shallow mounted hydraulic contol road blocker system
PRODUCT DISPLAY
What is the feature of the Hydraulic Road Blocker?
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4. Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up&down within 30 meters range
6. Customized for different users requests
7. Controller display : LCD and LED
8. Swiping card system: built-in card reader to control bollards up&down
9. Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10. Connected with Computer Management OR Charging Systems
PRODUCT DIMENSION
TECHNICIAL PARAMETERS
| Control System |
Electro- Hydraulic |
| Passing pressure: |
≤120 tons container trucks |
| System Dynamic power |
3.75KW |
| Rise time : |
≤1-3S(adjustable) |
| fall time : |
≤1-3S (adjustable) |
| Buffer function |
buffer time :0.2s-0.5s |
| Running noise |
≤60 db |
| Voltage: |
Three-phases 380V(control voltage 24V) |
| Oil container: |
60L/80L/120L |
| Control solenoid valve |
24V |
| Lifting solenoid valve |
24V |
| Remote control distance |
Approx .50-100m |
| Working Temperature : |
-35℃~75℃(suitable) |
| Material: |
A3 steel ,Spray anti-rust paint |
| Material thickness |
16mm (20 mm,25 mm optional) |
| Waterproof: |
IP68, double sealed |
| LED light color |
red,blue,green,yellow,purple,white…(customized) |
| Color: |
red,blue,green,yellow…(can be customized) |
| Weight: |
1.5T |
PRODUCTION DETAILS
MAIN FUNCTIONS
1. Can be manually raised and fall down if power cut.
2. Gang-control interface
3. Reliable structure, heavy duty load, smooth action, low noise.
4. In rising and falling, reversible operation is available .
5. Hydraulic drive comes with hydraulic lock
6. Welding cylinder
7. PLC programming command control system
8. LCD display ,Both Chinese and English menu.
9. PLC built-in encryption system
10. Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
11. Double dynamic double oil pump 2.3ML/time
12. Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
CASE REFERENCE
INSTALLATION INSTRUCTION
1. Easy-to-install, easy-to-maintain is what we pursue.
2. We provide detail & professional installation instruction (in English) to make your construction much easier.
With all the technical data, dimension and etc.
3. Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
FAQ
Where is the operation of the Hydraulic Road Blocker Barrier?
Widely use around prison,military base,bank,hotel,and others high security requirements places.
What is the package of the Hydraulic Road Blocker Barrier?
Inside with a carton package,outside crate package.
