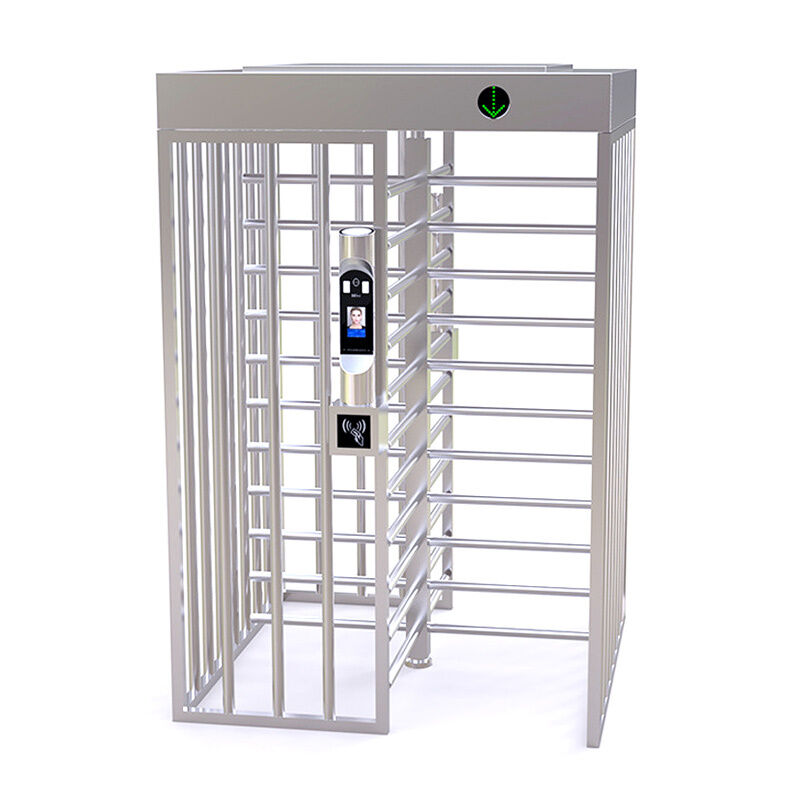

40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier
  • 40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier
  • 40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier
  • 40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier
40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier

40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Channel:
Single Channel
Power Consumption:
40W
OEM/ODM:
Supported
Arm Length:
500mm To 600mm
Direction:
Single Or Bi-direction
Arm Sections:
4 Sections
Highlight:

90 Degree Full Height Barriers

,

40W Unidirectional Full Height Barriers

,

4 Sections Turnstiles Full Height

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description
40W Unidirectional LED Display Full Height Barriers 4 Sections Turnstiles
LED digital display and counter function full height passageway space fingerprint recognition turnstile entry system
Full Height Turnstile Overview
This full height turnstile features a unique mechanical transmission system that integrates microprocessors with various card-reading technologies. When equipped with compatible reading devices, it enables intelligent pedestrian control and management.
Applications
The full height turnstile series are widely used in entrance/exit passages of airports, wharves, metro stations, bus stations, sports centers, prisons, fitness centers, factories, and similar facilities.
Key Features
  • Rainproof housing with anti-corrosion coating, available in 304 or 316 stainless steel
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved beyond half-way, returns to current position if moved less than half-way
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Light-touch operation suitable for elderly and children
  • Configurable for bi-directional or uni-directional operation
  • Key-locked housing prevents tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
Product Dimensions
40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier 0
Technical Specifications
Item Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 40W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Max flow rate 30 persons per minute
Arm length 500mm to 600mm
Working temperature -20°C to 60°C
Installation Examples
40W Unidirectional Full Height Turnstile with 4 Sections LED Display Full Height Barrier 1
Why Choose Our Full Height Turnstiles
  1. Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard models kept in stock
  3. OEM/ODM orders accepted to meet specific client requirements
  4. Trial orders available for testing before bulk purchasing
  5. Comprehensive online technical support
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days
