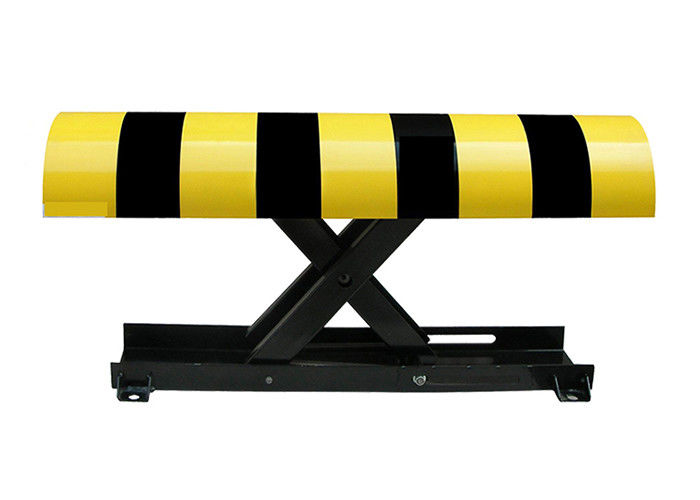

Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery
  • Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery

Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-3
Product Details
Material:
2mm Cold Rolling Steel
Quiescent Current(mA):
≤0.85Ah
Running Time:
5-6 Seconds
Remote Distance:
≤50m
Warranty:
1 Year
Up Height:
320mm
Down Height:
90mm
Motor Voltage:
DC12V
Recharge Time:
8 Hours
Highlight:

remote control parking lock

,

automatic parking lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description
Automatic Lead Acid Battery Car Parking Lock
320mm Rising Height Intelligent Parking Control System
Product Overview
This automatic parking lock system is designed to provide controlled parking access for various applications including public parking, reserved spaces for monthly/annual renters, condominium owners, disabled drivers, company executives, and visitors. It offers individual space control in mixed-use environments where access needs to be managed on a per-space basis.
Applications
Remote control parking locks are ideal for:
  • Office buildings
  • Residence condominiums
  • Hospitals
  • Airports
  • Shopping centers
  • Retail stores
  • Handicapped parking areas
  • Individual users
Technical Specifications
Motor Voltage12V DC
Battery12V 7.0Ah sealed lead-acid
Power Consumption (operation)20W
Power Consumption (standby)30mW
Remote Control Distance≥30 meters
Rising Time5-6 seconds
Falling Time5-6 seconds
Dimensions (raised)640mm L × 200mm W × 320mm H
Dimensions (lowered)640mm L × 200mm W × 90mm H
Gross Weight12kg
Dimensions
Automatic Car Parking Lock with 320mm Rising Height Remote Control and Rechargeable Battery 0
Key Features & Functions
  • Easy Operation: Simple remote control operation to raise and lower the parking lock
  • Quick Installation: Fixed to ground using expansion bolts only
  • Long Battery Life: Rechargeable battery provides approximately 1000 uses or 6 months of continuous operation
  • Heavy-Duty Construction: High-quality steel housing supports up to 5 tons with waterproof, rustproof, and dustproof coating
  • Burglar Prevention: Internal expansion bolts and alarm system deter unauthorized removal
  • Safety Features: Anti-disconnecting power design prevents short circuits
  • Impact Alarm: Loud alarm activates if vehicle hits the parking lock
  • Manual Override: Emergency manual control available during power outages
  • Low Battery Alert: Alarm notifies when battery requires recharging
