Flap Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FB04 |

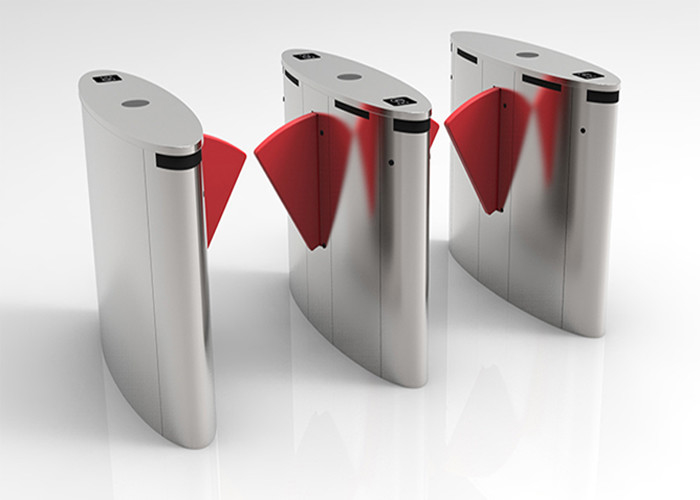

Fingerprint access control retractable flap barrier turnstile for ticket management system
Product introduction:
Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.
Functions and Features:
1. Door will keep opened automatically while power cut off.
2. Direction of through is adjustable, one-way, bi-direction.
3. LED direction indicator
4. Anti-pinch function
5. Anti-tail, prevent people follow pass without verified
6. Auto open when power cut off.
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. Option RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system.
Related photos:
Specifications of automatic wing gate:
|
Product: |
Automatic speed gate |
|
Cabinet material |
SS 304 |
|
Dimensions |
L1200 x W300 x H1000mm |
|
Passage Width |
550mm |
|
Power input |
AC 220V/110V |
|
Motor Voltage |
DC24V |
|
MCBF |
5 million cycles |
|
Pass Speed |
30 persons/min |
| Operating Environment | Indoor or outdoor (With Shelter) |
| Operating Temperature | -20°C ~ +60°C |
| Verification mode | RFID/ Fingerprint/Face recognition |
Top view:
Application scope:
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.
