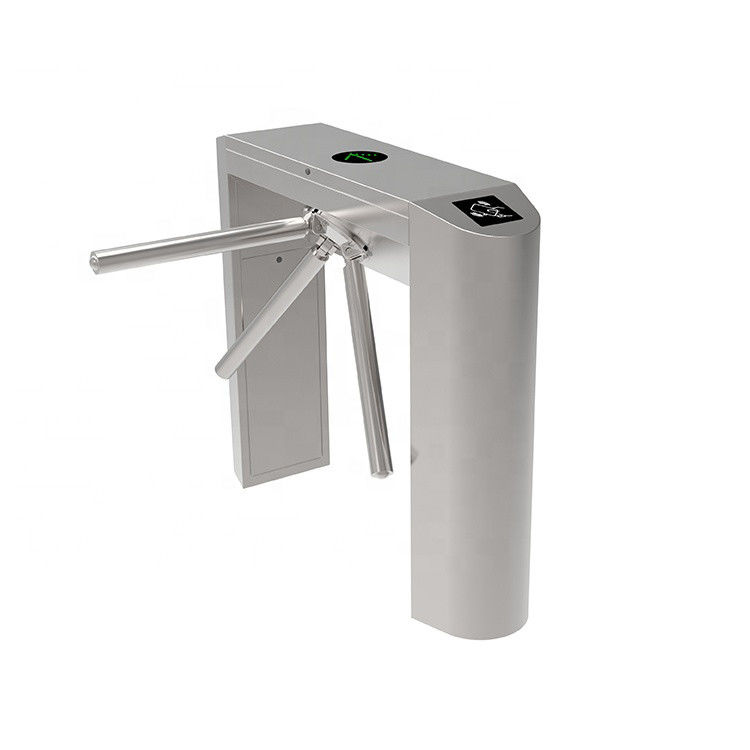

Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity
  • Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity
  • Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity
  • Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity
Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity

Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Application:
Indoor/outdoor
Control Voltage:
24V
Passing Rate:
30 Person/minute
Power Supply:
220V/110V
Turnstile Type:
Semi-auto
Control Signal:
Dry Contact
Highlight:

Bridge Style Tripod Turnstile Gate

,

Tripod Turnstile Gate 30 person/minute

,

Semi auto Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
1,000 pcs per month
Product Description
Semi Automatic Bridge Style Tripod Turnstile Gate RFID Access Control System
Semi Automatic Bridge Style Drop Arm Solenoid Tripod Turnstile RFID Access Control System
Product Overview
This turnstile provides reliable access control through efficient tripod operation while preventing unauthorized entry and exit. Designed for durability and security, the unit features rustproof construction and resistance to external damage.
Available in fully automatic and semi-automatic configurations. The semi-automatic model features automatic arm drop during power failure, with manual arm raising required when power is restored.
Key Features & Functions
  • Mechanical drive unit eliminates expensive electric motors and reduces maintenance costs
  • Heavy-duty solenoid lock mechanism ensures extended lifespan and minimal maintenance
  • Configurable for bi-directional or uni-directional operation
  • Built-in acrylic or plastic plate for easy integration with other access control devices
  • Automatic arm positioning: auto-rotates to next idle position if rotated more than half, returns to current position if rotated less than half
  • Adjustable tension spring controls auto-rotation force and minimizes unwanted movement
  • DC operation with built-in circuit breaker protection against electrical surges
  • Anti-tailgating system with limit switch detection and configurable time delays (5, 10, 15, 60 seconds)
  • Power failure mode: arm drops automatically for free passage
  • Key-locked internal housing prevents tampering
  • Built-in LED direction indicators
  • Light-touch operation suitable for elderly and children
Technical Specifications
Parameter Specification
Model SN-TT02
Cabinet Material SS304
Arm Material SS304
Production Process CNC Laser Cutting
Size 1200*280*980mm (customizable)
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single directional/Bi-directional (Optional)
Throughput Rate 30-35 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Operation Humidity 0~95% (No Freezing)
Operation Temperature -15℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP54
Communication Interface TCP/IP (optional)
MCBF 5,000,000 Cycles
Product Dimensions
Semi Automatic RFID Access Control Tripod Turnstile Gate with 30 Person/Minute Capacity 0
Product Advantages
  • Robustness: Long-life mechanical construction with superior-quality stainless steel housing
  • Security: Arms cannot be removed without special tools, mechanism cannot be forced
  • Economy: Simple installation process
  • Flexibility: Removable end covers for easy integration of any access control device, numerous configurations for all pedestrian access control cases
About Sinomatic
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • OEM/ODM orders accepted to meet client requirements
  • Trial orders and sample testing available before bulk orders
  • Online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
