Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height

Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height

    • Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height
    • Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height
  • Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-HRB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Working Temperature: -20℃~+75℃. Usage: Heavy Duty
    Axis Loading: 70 Tons Rising Height: 300mm To 800mm
    Rising Speed: Max 5s Falling Speed: Max 5s



    Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height



    Applications:



    Road Blockers are used where high perimeter security is required. The units are designed to restrict heavy duty commercial vehicles in secure areas and are ideal for the protection of financial establishments, embassies, bullion depots as well as lorry and distribution depots.



    Features of hydraulic road blocker:

    • Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
    • Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
    • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
    • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
    • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
    • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.
    • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.



    Specifications of hydraulic road blocker:



    Product Hydraulic road blocker

    Control system

    electric hydraulic control

    Voltage

    380V( control voltage:24V)

    System Power

    1.5KW/2.2KW/3.7KW

    Min. loading

    70T

    Rising time

    3 ~ 5 s

    Falling time

    3 ~ 5 s

    Rising Height

    350-800mm

    Working temperature

    -20℃~75℃.

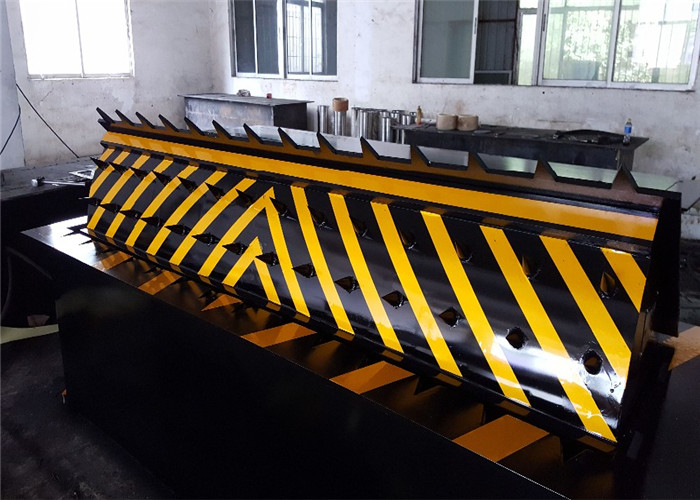

    Photo of hydraulic road blocker:

    Heavy duty Security Solutions Hydraulic Road Blocker 300mm to 800mm Rising Height





    Installation:


    1) Installation position
    The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
    according to the actual situation of the scene, installed in the appropriate location for easy operation
    and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
    set in a place where is easy to control and operate according to the customer request (Next to the work
    station of the personnel on duty).


    2) Pipeline connection
    2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
    charged. After confirmed the installation position of road blocker and hydraulic station (can know how
    long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
    the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
    ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
    safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
    operations is implementing.
    2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
    the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
    wire is 5 ~ 15 cm, width is about 5 cm.
    2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
