    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 3-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Flap Material: Clear Acrylic Flap Color: Clear Or Others
    Power Supply: 110V/ 220V Operational Voltage: DC 24V
    Prectection Level: IP 44 Working Temperature: -20℃ ~ +60℃
    High Light:

    speedgate turnstile

    ,

    pedestrian turnstile

    Double direction waist high turnstiles , clear acrylic automatic flap barrier pedestrian flow control



    Introduction:



    The barrier is able to authorize passage to persons presenting a valid electronic security card (or other authentication device). The barrier can integrate with the building access control system.



    The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.



    Main fucntions and features:



    1. Stainless steel housing, novel and beautiful design, durable and stable mechanism.



    2.Can work with different systems , such as access control system , ticketing system , ESD system , consumption system , construction system , etc.



    3.Malfunction self-detection, which is easy for operation and maintenance.



    4.Operational mode can be set up through the built-in menu on the control panel.



    5.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.



    6.Anti-collision function, the flaps will stay close if not receive the open signal.



    7.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.



    8.Flaps reset to close position when power resume.



    9.Flaps reset to lock position when access time expire.



    10.Prevents Invalid/Tailgate/Wrong direction access.



    11.Led Indicator Light : Red and green light prompt the passing information.



    12.Compatible with diverse access control devices.



    13.Pedestrian flow directions can be single or double directions.

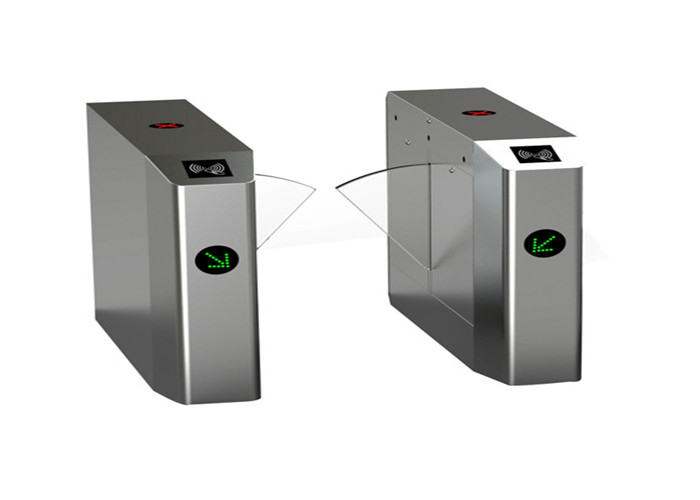

    Product photo:

    Double direction waist high turnstiles , clear acrylic automatic flap barrier pedestrian flow control





    Specifications of automatic wing gate:



    Product:

    Automatic speed turnstile

    Housing material

    304 or 316 stainless steel

    Dimensions

    L1200 x W300 x H1000mm

    Width of wing 270mm

    Maximum Passage Width

    600mm

    Power Supply

    AC220V±10%,50HZ/ AC110V±10%,60HZ

    Motor Voltage

    DC24V

    MCBF

    5 million cycles

    Transit Speed

    30 persons/min

    Operating Environment Indoor/outdoor (Shelter)
    Operating Temperature -20°C ~ +60°C





    Extendable features:

    1. The material of housing: 304 or 316 stainless steel

    2. The length of the housing (length 1.2m, 1.4m, or 1.6m are optional )

    3. The material of flap arm (acrylic glass, resin, PVC etc. optional)

    4 .The colour of the flap arm (red, blue, yellow, colourless, etc.)
