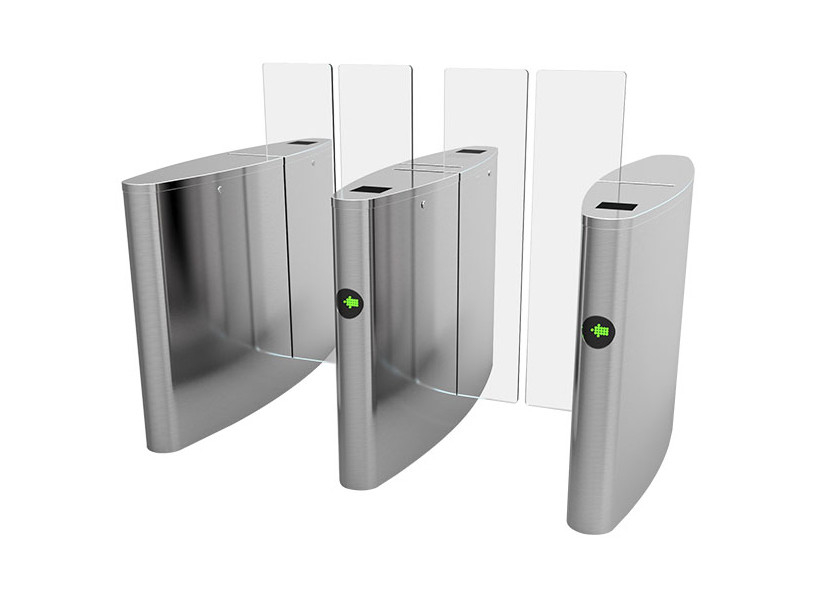

Large Image :  304 Stainless steel 24V DC motor Access Control Turnstiles 55cm passage width

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SLB03

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 1,000 pcs per month
Contact Now
Detailed Product Description
Wing Panel: 10 Mm Thickness Of Acrylic Optimal Traffic Rate: 20 To 30 Person Per Min
Power Supply Input: 220V/110V ± 10% AC, 50 / 60Hz Power Consumption: 30 Watt
Humidity: 0 To 95% Operating Voltage: DC 24V



304 Stainless steel 24V DC motor Access Control Turnstiles 55cm passage width



Full height sliding barrier is a high security level access control device with high door panel design prohibit attempt to climb over. Access control and time attendance reader can be integrated into sliding barrier.





Features:



1. Emergency Recovery. During power failure, panel will open automatically to allow free pass through. This allows fast evacuation in emergency.



2. Sliding barrier design with high door panel to prevent unauthorized visitor from gaining access by climbing over or crawling under the gate.


3. Premium stainless steel and glass panel material with elegant arc design effectively help create an welcoming and elegant prestigious atmosphere at building entrance to impress your visitors.


4. High performance IR sensor is used to detect tail-gating, illegal passing attempt and pass through direction to ensure maximum security at front gate. Door panel will be closed if tailgating is detected.



5. Key internal parts is treated with anti-rust and anti-septic to ensure long term reliability.



Specifications of full height sliding gate:



Item

Specification

Housing Material

304 grade stainless steel

Panel material Clear Acrylic
Housing size 150*30*99cm
Panel height Up to 180cm above the ground
Motor type brushless DC motor

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V

Max flow rate

25 to 30 person per minute

Panel opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~+60°C



Dimension:



304 Stainless steel 24V DC motor Access Control Turnstiles 55cm passage width

304 Stainless steel 24V DC motor Access Control Turnstiles 55cm passage width



Installation dimension:

304 Stainless steel 24V DC motor Access Control Turnstiles 55cm passage width
