BLDC Sliding Turnstile Gate High End Patent Edifice Entrance Speed
  • BLDC Sliding Turnstile Gate High End Patent Edifice Entrance Speed
  • BLDC Sliding Turnstile Gate High End Patent Edifice Entrance Speed

BLDC Sliding Turnstile Gate High End Patent Edifice Entrance Speed

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Product Details
Passing Speed:
30 Person Per Minute
Motor:
BLDC Motor
Power Supply:
AC 100V~240V
Working Voltage:
DC 24V
Passage Width:
550 ~ 600 Mm
Barrier Height:
1.2 To 1.6 Meters
High Light:

High End Patent Turnstile Gate

,

BLDC Sliding Turnstile Gate

,

Edifice Entrance High End Turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

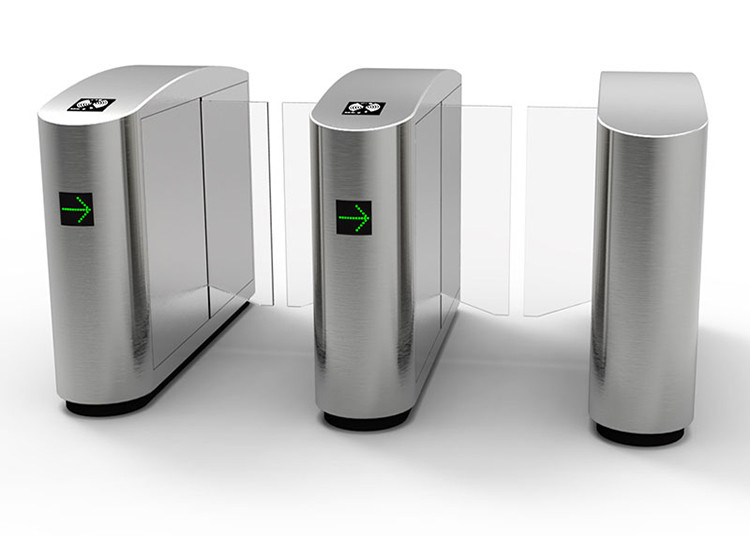

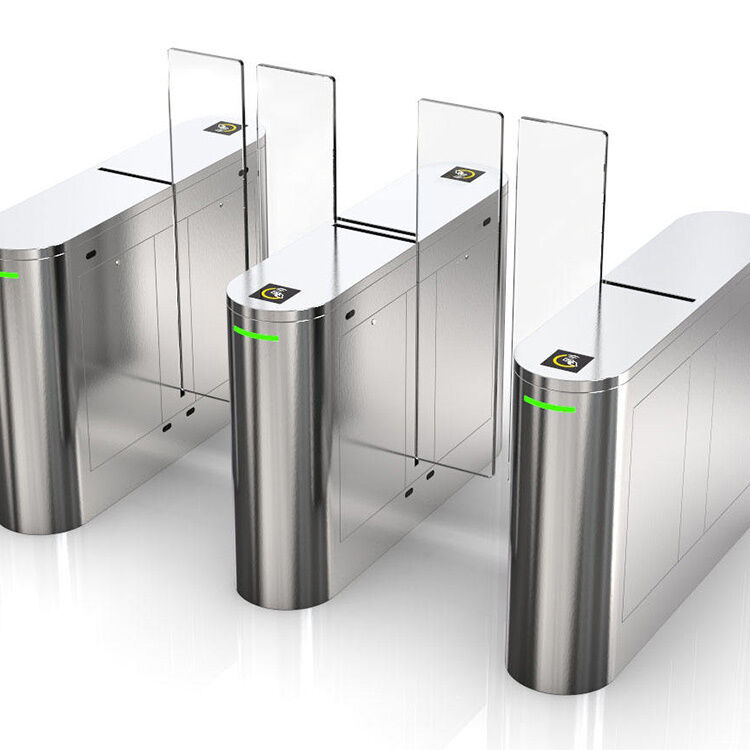

High End Patent Design Edifice Entrance Speed Sliding Turnstile Gate



PRODUCT SPECIFICATIONS



Housing Material International standard 304SS (SS316 optional)
 Dimensions 1200Lx330Wx1000H mm (Support Customization)
Passage Width 550 to 600 mm
Net Weight 70kg/90KG
Passing Speed 30-40 person/minute
MCBF 5 million times
Input Voltage AC100V to 240V
Driving Motor DC brushless motor 24V
Working Environment Indoor and outdoor
Working Temperature -40℃—— 80℃
Suitable Humidity 5%—— 90%



BLDC Sliding Turnstile Gate High End Patent Edifice Entrance Speed 0

SINOMATIC SLIDING BARRIER ADVANTAGES



  • Faster pass speed and better performance for anti-trailing.
  • The design of connecting rod - run smoothly without noise.
  • Anti-climb, anti-creeper, strict management and higher grade appearance which offering graceful passage.
  • Infrared anti pinch design and dormancy function when barrier is blocked to achieve a more safe passage.
  • Sound and light alarm, including illegal intrusion, enter from wrong direction, trailing and overdue passing etc.
  • Gate auto open when power is off to meet the fire protection requirements.

PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading;

One direction card reading and another freely. And single direction photocell controlled passing and close. Working

ways can be set in the control panel.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the

control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile

will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the

Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through

the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close

automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a

while with very slight force. Also it will alarm.


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.



ABOUT OUR COMPANY



Shenzhen Sinomatic Technology Co., Ltd is a 20-year old national hi-tech company located in Shenzhen, China since

the year of 2002. Sinomatic team devotes ourselves in providing middle & high end solution of physical access control

turnstile solution for clients all around the world.



We are the holder of :

Independent intellectual rights of products, dozens of development technology patents of core tech.



Dozens of models for choice(Tripod turnstile, swing turnstile, flap turnstile, full height turnstile, sliding turnstile, drop-arm

turnstile and barrier free turnstile etc).


All products had passed the quality and function test of Testing Center for Quality of Security & Police Electroinic

Products under the Ministry of Public Security of P.R. China.


Award the honour of “National High Technology Expertise”, “China Top 100 Enterprise of Security Industry ”, “China

AAA Credit Grade Enterprise”.


Our product are popular in people’s daily life and has been widespread applied in different scenarios like MRT & LRT,

modernized edifices & office premises, bank, campus and kindergarten, residential communities, factories, construction

site, stadiums, scenic spots, prisons etc. Till now, we have thousands and hundreds successful cases.
