Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height

China Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height supplier
Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height supplier Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height supplier

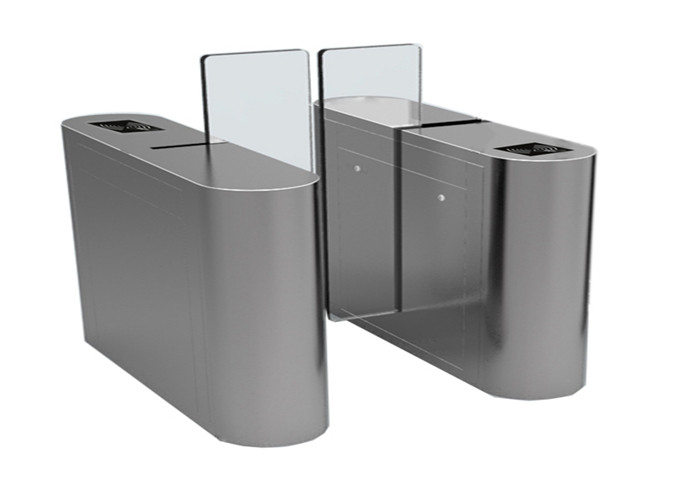

Large Image :  Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-SLB01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 1,000 pcs per month
Contact Now
Detailed Product Description
Wing Panel: 10mm Thickness Acrylic Operating Voltage: DC 24V
Power Supply Input: 220V/110V ± 10% AC, 50 / 60Hz Power Consumption: 30 Watt
Max Flow Rate: 25 To 30 Person Per Minute IR Sensor: Yes



Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height



General introduction:



Full height sliding barriers series is ideal indoor solution for lift lobby of commercial, industrial or government building. elegant arc design and detailed hair line polishing effectively alleviate prestigious feeling of your building entrance.





Features:



1. High performance IR sensor is used to detect tail-gating, illegal passing attempt and pass through direction to ensure maximum security at front gate. Door panel will be closed if tailgating is detected.


2. Sliding barrier design with high door panel to prevent unauthorized visitor from gaining access by climbing over or crawling under the gate.


3. Premium stainless steel and glass panel material with elegant arc design effectively help create an welcoming and elegant prestigious atmosphere at building entrance to impress your visitors.


4. Uses brushless DC motor eliminate the need of changing carbon brush thus reducing maintenance work. Key internal parts is treated with anti-rust and anti-septic to ensure long term reliability.



5. During power failure, door panel will open automatically to allow free pass through.



Specifications of full height sliding gate:



Item

Specification

Motor type

Brushless DC motor

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~+60°C



Dual lanes photo:



Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height
