Pedestrian Waist Height Access Control Turnstiles Gate With Glass Panel

China Pedestrian Waist Height Access Control Turnstiles Gate With Glass Panel supplier

Large Image :  Pedestrian Waist Height Access Control Turnstiles Gate With Glass Panel

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-SLB01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union, D/P, D/A, L/C, MoneyGram
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Panel: Clear Acrylic Panel Drive Motor: DC 24V Motor
Power Supply: AC220±10%V 50Hz/AC110±10% 60Hz Product Type: Full Height Sliding Gate
Flap Opening / Closing Time: 1S Panel Height: 1.6 Meter

304 stainless steel case pedetrian waist height sliding turnstile access control turnstiles with glass panel



Introduction of waist height sliding turnstiles:



  • Auto returning/resetting function: when the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time.
  • One-way and two-way in and out control modes
  • Sound and lights alarming: including break-in and opposite direction intrusion, and so on.



Applications of waist height sliding turnstiles:



Sinomatic waist height sliding gate is suitable for indoor or outdoor with tent. They are widely used in airport, railway station, metro station, bus station, stadium, supermarket, check point, book stores, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



Features of waist height sliding turnstiles:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of half height sliding gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C

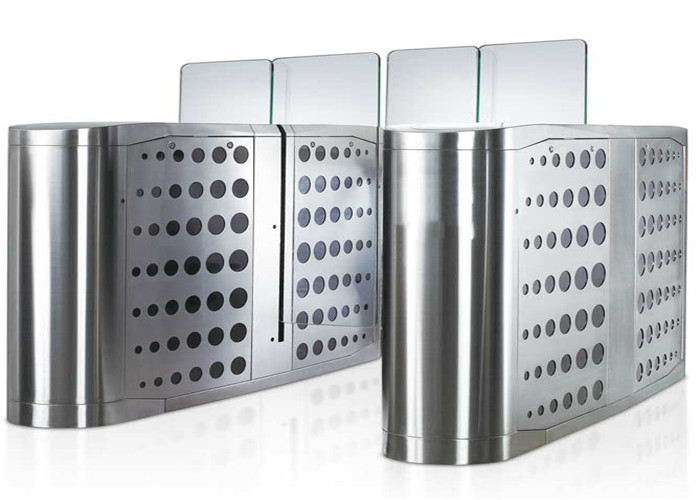

More photo of waist height sliding turnstiles:



Pedestrian Waist Height Access Control Turnstiles Gate With Glass Panel



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
