304 Stainless Steel Security Waist High Turnstiles , Rotating Controlled Access Turnstiles

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

304 Stainless Steel Security Waist High Turnstiles , Rotating Controlled Access Turnstiles

China 304 Stainless Steel Security Waist High Turnstiles , Rotating Controlled Access Turnstiles supplier

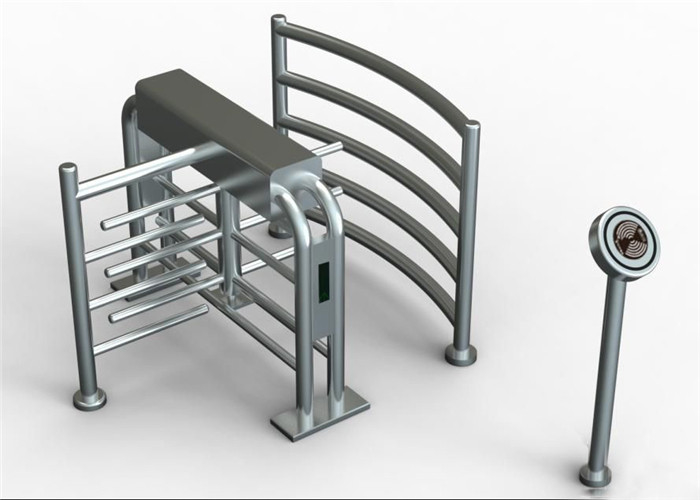

Large Image :  304 Stainless Steel Security Waist High Turnstiles , Rotating Controlled Access Turnstiles

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-HHT02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Material Of Housing: 304 Stainless Steel Max Flow Rate: 25 To 30 Person Per Minute
Arm Length: 40cm Thickness Of Housing: 1.2mm Or 1.5mm
Standard: CE Certificated Access Device Input: Dry Contact Or 12V Electrical Level Signal

Access control 304 stainless steel security automatic 90 degree rotating waist height turnstile





Introduction of waist height turnstile:



1. Rainproof housing, 304 or 316 stainless steel.

2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
3. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



Applications of waist height turnstile:



Sinomatic half height turnstile can be widely used in places like stadium, hotel, hospital, school, airport, wharf, metro station, railway station, park, supermarket, swimming pool, library, museum, book store, commercial and business center etc.



Features of waist height turnstile:

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of waist height turnstile:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

40cm

Working temperature

-20°C~60°C



Cases of waist height turnstile:



304 Stainless Steel Security Waist High Turnstiles , Rotating Controlled Access Turnstiles





Why choose us:



1. 13 years of OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
