RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock

RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock

    • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
    • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
    • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
    • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
    • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
  • RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-HHT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Type: Half Height Turnstile Max Flow Rate: 25 To 30 Person Per Minute
    Direction: Single Or Bi-direction Material Of Housing: 304
    OEM/ODM: Supported Warranty: 1 Year
    Package: Wooden Box Arm Lenght: 450mm(dafault)

    RFID Card Reader intelligent passage management Turnstile Gate Half Height Turnstile



    Introduction of half height revolving door

    RFID Card Reader Turnstile Gate Half Height Turnstile series are intelligent passage management equipment, researched, developed and produced by our company. The equipment is integrated with dedicate mechanical transmission, microprocessor control and various write & read techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.



    Main Functions & Features of the System

    1. Accurate and efficient identification technique, supports the magnetic card, bar code card, ID card and IC card (access controller needed)

    2. No need motor, maintenance free;

    3. With direction indicator, guiding passengers to entry and exit;

    4. With auto-lock function to prevent passengers forcedly passing without the card;

    5. Remote control management to meet the special requirements of the users and emergency;

    6. Reset automatically. if the passer didn’t pass in the preset time after reading card, the system will cancel his/her permission automatically. the administrator can set passing time by himself.



    More features

    1. Anti-corrosion coating.

    2. CNC stamping and laser drilling, presenting a novel and elegant appearance.

    3. Innovative and unique mounting surface ensures simple and convenient installation for system integration.

    4. Direction can be set as single-direction or bi-direction.

    5. There is low noise and impact when running.

    6. Dual-bearing mechanism, keeping the gate in balance when there is external force.



    Specifications of half height revolving door



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    400mm to 500mm

    Working temperature

    -20°C~60°C

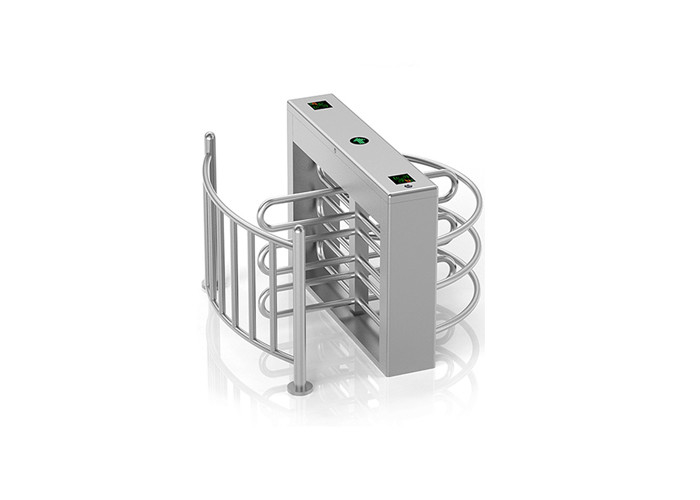

    Photo of half height revolving door:

    RFID Card Reader Half Height Turnstile Intelligent Passage Management Auto Lock
