Unique Two Way Anti Reverse Stainless Steel Turnstile / Turn Style Door

China Unique Two Way Anti Reverse Stainless Steel Turnstile / Turn Style Door supplier

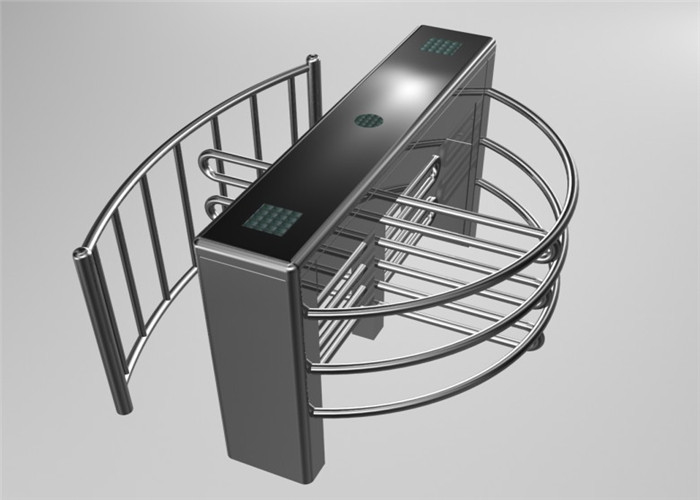

Large Image :  Unique Two Way Anti Reverse Stainless Steel Turnstile / Turn Style Door

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HHT01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Access Device Input Voltage: Dry Contact Or 12V Electrical Level Signal Max Flow Rate: 25 To 30 Person Per Minute
Material Of Housing: 304 Or 316 Stainless Steel Arm Length: 40cm
Thickness Of Housing: 1.2mm Or 1.5mm Application: Indoor/outdoor With Tent

Pedestrian Control System 304 stainless steel security semi-automatic half height turnstile gate



Introduction of half height turnstile gate



1. Unique two-way anti-reverse function.
2. Anti-rushing function ,when the gate signal is not received, the turnstile arms locked automatically
3. The center rotor will be set free (default) or locked (optional) automatically when the power is off.



Applications of half height turnstile gate



Sinomatic half height turnstile can be widely used in places like stadium, hotel, hospital, school, airport, wharf, metro station, bus station, park, supermarket, swimming pool, library, museum, book store, commercial center etc.



Features of half height turnstile gate

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of half height turnstile gate



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

40cm

Working temperature

-20°C~60°C



Cases of half height turnstile gate



Unique Two Way Anti Reverse Stainless Steel Turnstile / Turn Style Door
