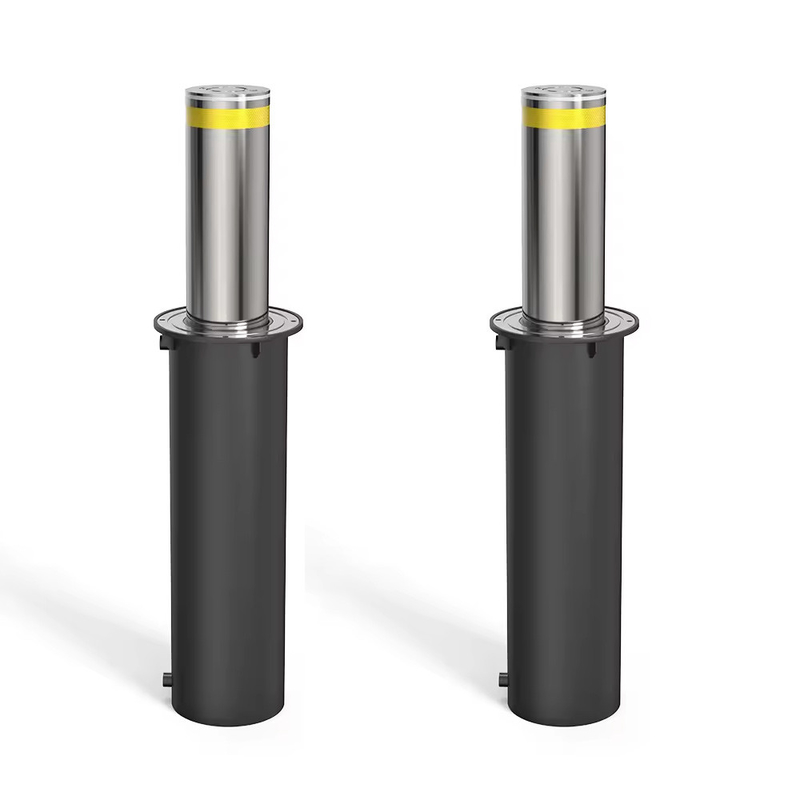

Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic
  • Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic
  • Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic
  • Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic

Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BO-219
Product Details
Power Supply:
220V(default)/110V Optional
Bollard Thickness:
6mm(default), 8mm, 10mm,15mm, 20mm Optional
Rising Height:
600mm(default), 800mm Optional
Casing Dimension:
Diameter 350mm,Height 800mm
Bollard Diameter:
219mm (273mm Optional)
IP:
68
High Light:

Stainless Steel Automatic Bollard

,

Driveway Rising Security Bollards

,

Residential Rising Security Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$400~US$500
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
SPECIFICATIONS
Product model
SN-BO-219
Material
SS304
Thickness
6MM ±0.5
Waterproof
IP68
Net weight
60KG



PRODUCT DESCRIPTION



Automatic bollards are commonly used to secure public and private property and some high security areas. It acts as visual barricade. They range from semi-auto retractable bollards, to fully automatic crash rated bollards.They are available in a variety of sizes, finish,material. Bollards and security road blockers can protect people and places from unsecure issue.



Each system has its own unique characteristics with how it moves the automatic bollards, and also difference in their efficiency and maintenance. Electronic Piston Drive Systems uses and electric motor to push the piston within the bollard. These systems have the highest precision control, and are also the quietest of all the other systems.



OUR ADVANTAGES



1. Different thickness of steel is available (default 6 mm)


2. The different color is available


3. Customized size is available


4. Steady and safe due to the OMRON PLC control system


5. Speedy rising time and durable quality with hydraulic pressure

6. Housing with durable and stainless Galvanization


7. Optimization of the frame structure, high anti-impact capability, high loading capability


8. High security and anti-collision ability


9. With a reflective band and a low energy consumption LED light at night



Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic 0



TECHNICIAL SPECIFICATIONS



Bollard Color
Stainless steel original color
Raising/lowering speed
≤4.5S/ ≤3S
Diameter
219mm
raised height
600-800mm(optional)
Material
304 stainless steel
Control mode
Remote control(<50m)
system control
Hydraulic and electric control
Working temperature
-30℃~+75℃
Embedded cylinder depth
800mm
Lamp belt
LED light (Acrylic light circle)
Power Supply
220V
Thickness
6mm
Weight
60kg
Anti-collision levels
K6
service life
5 million times
Drainage mode
Natural drainage+External drainage system


Automatic bollard features

High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.



Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.



Stainless Steel Driveway Residential Rising Security Bollards Retractable Hydraulic 1
