Vehicle Detector Sensor
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE |
| Model Number | ITS-AX2 |
PRODUCT DESCRIPTION
ITS-AX2 barrier gate control radar is developed for the entrance and exit management of parking lots or underground garages. It can precisely control the rising and falling of the gate rod by cooperating with the main control board of the gate control system, which could effectively avoid the "accidental injury" of the gate rod to the passing vehicles or pedestrians in the radar field of view,and realize intelligent anti smashing.
ITS-AX2 radar adopts the highly integrated RF chip SOC scheme, which has the characteristics of small size, low cost, all-weather working capability, high detection sensitivity, high precision, easy to debug&installation, very good stability and reliability.
The working frequency of the radar is 79GHz, with Linear Frequency Modulation and Continous Waveform, which makes the available bandwidth up to 4GHz. The range resolution is up to 4cm, and ranging accuracy is better than 2cm. The radar antenna adopts multiple transmitting and multiple receiving design that enables the radar good angular resolution and high angle measuring accuracy. The onboard signal processing and control unit apply the DSP&arm dual core architecture. Through the joint optimization design of software and hardware, this product can accurately identify and distinguish the pedestrian, vehicle and other targets passing through the brake lever area, and avoid the phenomena of "smashing the vehicle", "smashing the person" and "not dropping the lever"
PRODUCT SPECIFICATIONS
| Product name | Wireless BT radar vehicle detector for boom barrier |
| Voltage | DC10V-16V (standard 12V) |
| Vehicle detection probability | ＞99.99% |
| Pedestrian detection probability | ＞99% |
| Horizontal beam | 120° |
| Vertical beam | 15° |
| Response time | 100ms |
| Dimension | 107.5(L)X73.2(W)X18(H)mm |
| Weight | 120g |
| Relative humidity | At 25℃, the relative humidity is 98% |
| Use for | For Car Parking System Boom Barrier |
| Power consumption | < 2.5 |
| Detect object | Vehicle/People |
| Working voltage | DC10~16V |
| Waterproof grade | IP67 |
| Working temperature | -40℃ ~+85℃ |
| Frequency | 77GHZ~81GHZ |
| Antenna gain | 10dbi |
| Antenna transmitting power | 12.5dbm |
| MTBF | MTBF＞18000 hours |
MAIN FEATURES

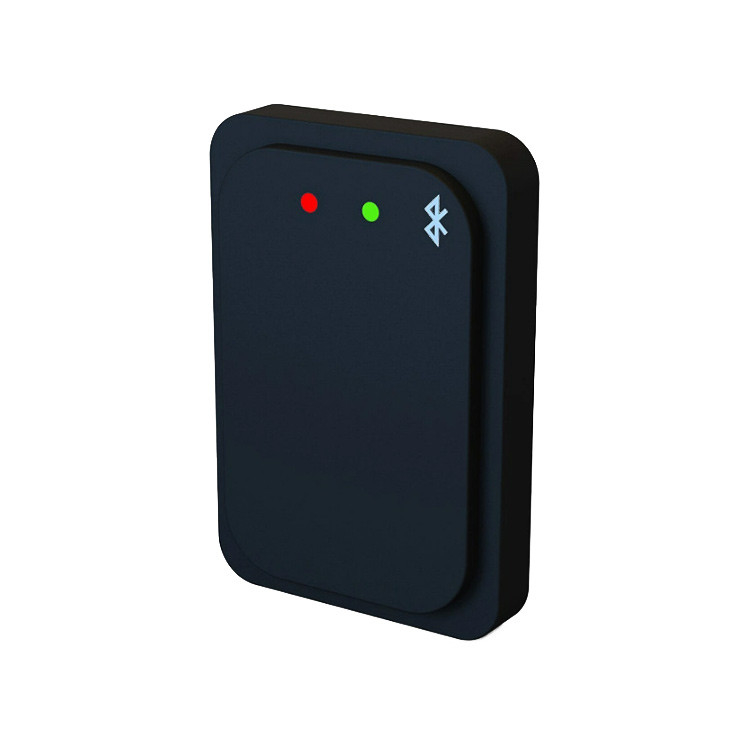

LED indicators: There are two LED indicators on the surface of the front of radar. The red LED is the power state lamp which will stay on when the power supply is turned on. The green LED is the operating status lamp which will be automatically trigger on when objects detected in the access area and it goes off when there is no objects.
Detection Zone configuration: The default detection Zone of the radar is 3 meters forward times 0.5 meters on the left and right sides. Different detection areas can be configured via mobile APP or debugging software running on uphost computer.
onfiguration parameters saving and reload: Configuration such as detection area could be automatically saved, and the latest configuration parameters after power failure and restart will be reloaded
Firmware upgrade: The firmware can be upgraded online through RS-485 or APP interface with host computer without taking off the cover board and the new firmware can take effect just by restarting the power of radar
Stable performance: Millimeter wave radar sensing capablity stay nearly the same under different light illuminations, climates such as rain, fog or snow and dust.
