Full Height Turnstile
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FHT01 |

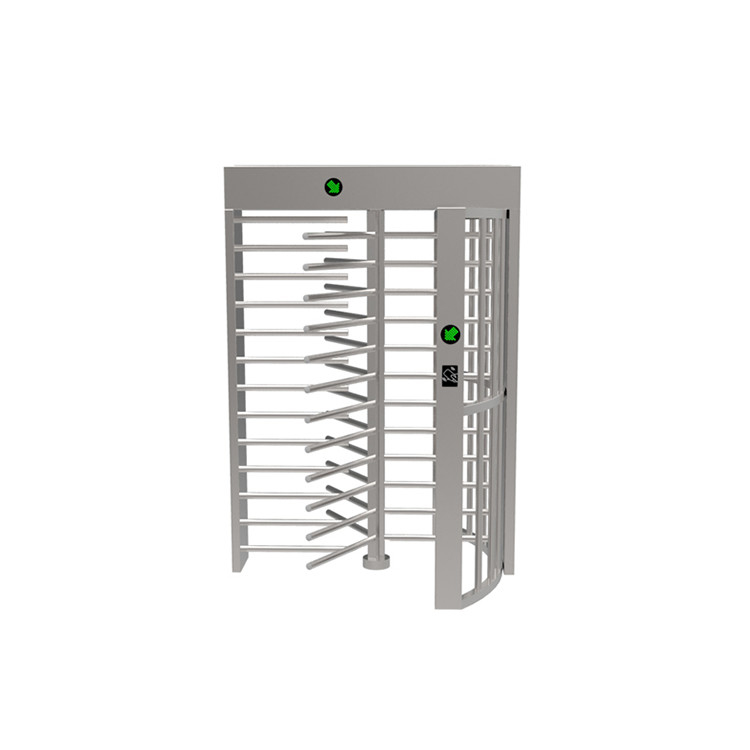

Highest Safety Access Control Solution Brushed Stainless Steel Robust Full Height Turnstile
PRODUCT DESCRIPTION
Full height turnstile is highest safety access control solutions. Sinomatic full height turnstile, the body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable. It is ideal for both indoor and outdoor settings.
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
It has sufficient space, which can be mounted with any type of external device.( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert, Barcode/QR reader, Wheel).
PRODUCT TECHNICIAL SPECIFICATIONS
| Model No. | SN-TT01 |
| Brand | SINOMATIC |
| Framework Material | 304 Full Stainless Steel |
| Dimension | 1500 * 1343* 2300mm |
| Weight | 200kg/pc |
| Passage Width | 1 Lane, 600mm/lane |
| Arm Section | 120° rotors with 3 sections |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 5 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -20 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 30-35 people per minute |
| LED Indicator | Yes |
| Emergency | Automatic arm unlock when power off |
| Communication | Dry contact, Relay signal, RS485 optional |
MAIN FUNCTION AND FEATURES
1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.
2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
