SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S
  • SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S

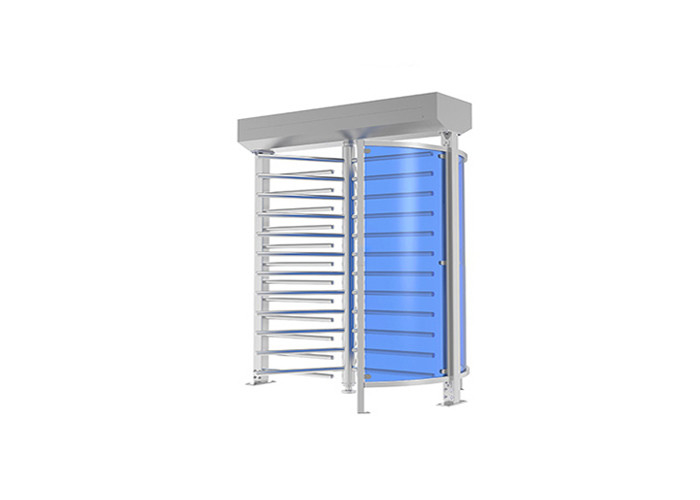

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Power Supply:
AC 220V/ AC110V ± 10%
Frame Material:
1.5mm Thickness SS304
Transit Speed:
20~30 Person Per Min
Thickness Of Frame:
1.5mm
Arm Length:
550mm(default)
Unlock Time:
0.2S
Width Of Passage:
600mm(default)
Package:
Wooden Box
Control Voltage:
DC24V
Surface Treatment:
Brushed
High Light:

SS304 Full Body Turnstile

,

Single Passage Full Body Turnstile

,

0.2S Access Control Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
100 pcs per month
Product Description

304 Stainless steel single passage automatic LED light direction indicator full body turnstileoor



Basic Description

Full height turnstile is often used for high security access control solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
Full height turnstile is ideal for both indoor and outdoor settings.
It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
It is very safety, to meet fire-control passage requirements, the turnstile gate will open(or closed) automatically when the power off.



Product Photo



SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 0



Product dimension

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 1



Functions & Features

1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
3. Self-test function, when power on, system restoration automatically.
4. Dual-bearing device, keeping the gate in balance when there is external force.
5. Single directional or Bi-directional is selectable.
6. LED indicator.
7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
8. When power off, turnstile will be open(default) or closed (optional).



Control & Interfaces optionals

1, Card readers

2, Metal detection

3, Electronic/LCD counters

4, Fail-open or fail-secure locking

5, Push-button and wireless remotes

6, Manual key override both directions

7, Indicator lights



Technical specification



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
Arm length
550mm (default)
Lane width
600mm (default)
Working temperature
-20°C~60°C
Current
3A
Control circuit
DC24
Working humidity
0~95%RH
Arm Diameter
38mm



Workshop photo

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 2

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 3



Packing photo





SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 4

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 5



How full height turnstile access control system works

SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 6



Cases reference



SS304 Full Body Turnstile Single Passage Automatic LED Light Indicator 0.2S 7
