170kHz Vehicle Radar Detector 230VAC 10ms Single Channel Loop Detector

Single Or Two Way Black Color Access Control Vehicle Loop Detector For Boom Barrier

PRODUCT INTRODUCTION

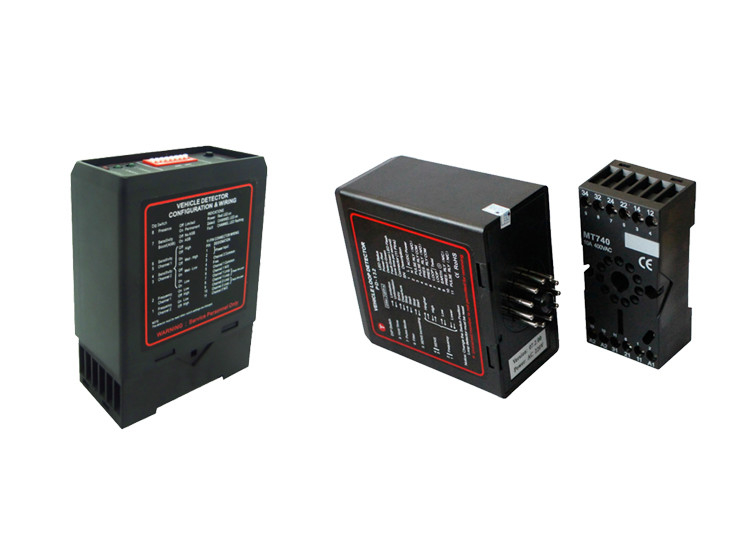

This loop detector is a dual microprocessor based detector designed specifically for parking and vehicle access

control applications.The primary function of the detector is to detect vehicle presence by means of an inductance

change caused by the vehicle passing over a wire loop buried under the road surface.

Vehicle loop detector is a necessary accessory for boom barrier/traffic. No lower arm when vehicle are passing

to protect your cars. And lower arm automatically after vehicle passed by.


OUR ADVANTAGES

COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE

PRODUCT FEATURES

1) Reset Switch:The reset switch enables the detector to be manually reset during registering and testing

and it is a process of system recovery

2) Selectable Pulse Time:This feature sets the length of time that the pulse relay will be lasting for 1S or 0.5

Seconds

3) Pulse Relay Selection:The Pulse Relay may be configured to activate on detection of a vehicle or when

the vehicle leaves the loop

4) Sensitivity Reinforcement:This feature sets the un-detecting level to a maximum sensitivity to prevent

failing to detect vehicles as big trucks

5) Switch Sensibility Adjustable:4 sensitivity setting are available on the switches to change sensitivity

6) Switch Frequency Adjustable:4 frequency settings are available to prevent signal interference with

neighboring loops

7) Filtering Option:This option is used to provide a delay between detection of the vehicle and switching

of the output relay. This relay is normally used to prevent false detection of small or fast moving objects

8) Permanent Presence Option:This feature ensures the detection of the vehicle will be maintained when

the vehicle stays within the loop area for extended periods
