Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V

Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V

    • Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V
    • Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V
  • Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SLB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Passing Rate: 30 Person Per Minute Flap Height: 1.2m To 1.5m
    Flap Material: 10mm Thickness Acrylic Flap Color: Clear
    Flap Function: Support LED Light Motor Type: DC Brushless Motor
    High Light:

    1.5m Flap Sliding Barrier Turnstile

    ,

    AC220V Sliding Barrier Turnstile

    ,

    IP54 Double Lane Barrier Turnstile

    Optical RFID Swiping Card reader intelligent door entry pedestrian passing baffle gate access control equipment



    PRODUCT PARAMETER





    Model No.
    SN-SLB01
    Cabinet Material
    304 Stainless Steel
    Dimensions
    Cabinet:1200*330*1000mm
    Motor Type
    DC brushless
    Weight
    70KG
    Arm Length
    250-300mm
    Passage Width
    550-600mm
    Dry Contact
    12V
    Material Thickness
    1.5mm
    Card-reading Window
    Included
    Direction
    Bi-directional
    Service Life
    5 million times
    Operating Temperature
    -25℃ ~ +60℃
    Related Humidity
    ≥90%RH
    Power Supply
    AC220V/110V ±10% 50/60MHZ (optional)
    NO PASSING Speed
    30-40 persons per minute
    NC PASSING Speed
    20-30 persons per minute



    PRODUCT PHOTO

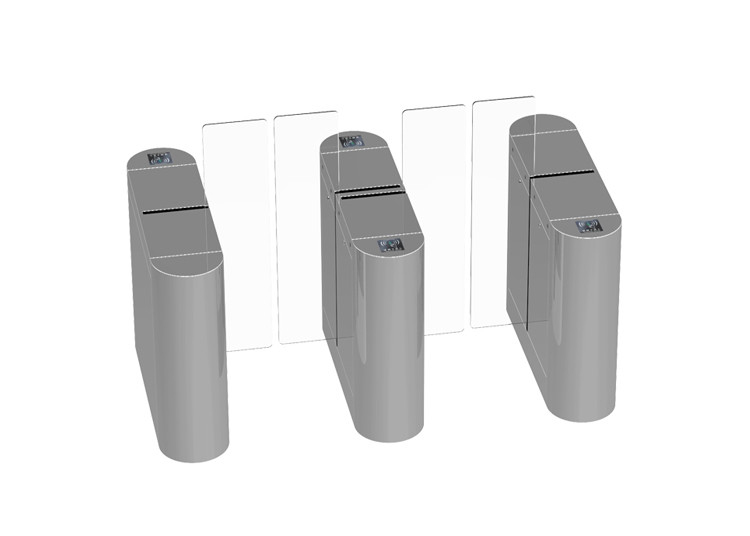

    Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V 0Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V 1



    PRODUCT FUNCTION AND FEATURES



    1. Problem-self-checking function.



    2. Control board is with standard electrical interface for the integration of various access control terminal.


    3. When power off, arm open automatically and power on again, arm will be held automatically.


    4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


    5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


    6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.



    7. Direction display to guide passenger which direction is to go.


    8. Anti-rush function: If there is no open signal, arm will be holding tightly.


    9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.



    10. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.



    PRODUCT DIMENSION

    Double Lane IP54 1.5m Flap sliding Barrier Turnstile AC220V 2
