    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SLB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Wing Panel: 10mm Thickness Acrylic Operating Voltage: DC 24V
    Power Supply Input: 220V/110V ± 10% AC, 50 / 60Hz Power Consumption: 30 Watt
    Max Flow Rate: 25 To 30 Person Per Minute IR Sensor: Yes
    Wing Height: 1.5m From Ground Wing Width: 270mm

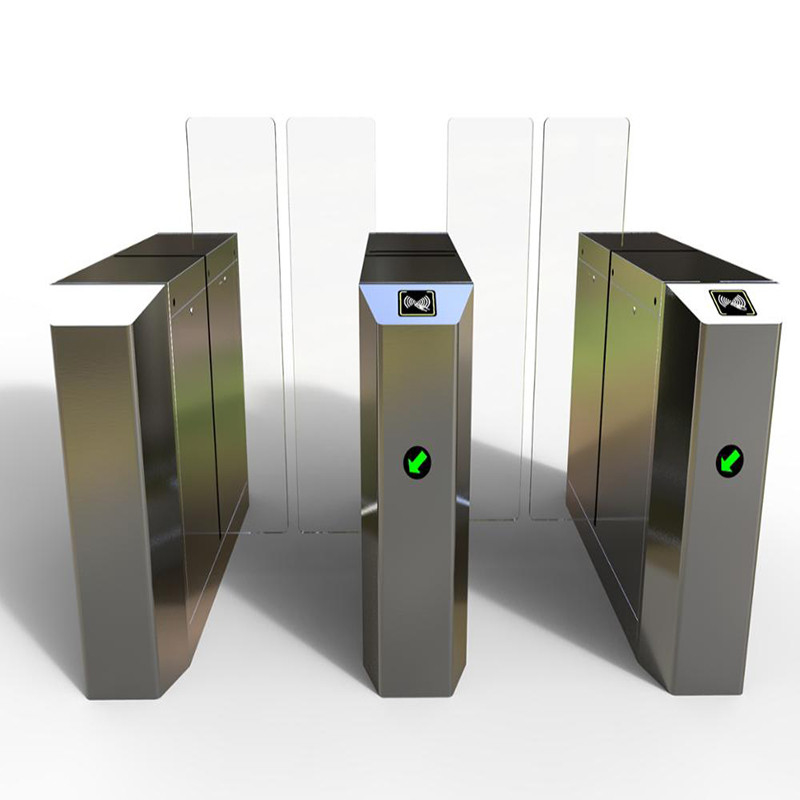

    Full height automatic smart DC brushless motor glass sliding turnstile access control system



    General introduction:

    Intelligent speed gate is mainly used to prevent pedestrians illegally drilled or climbing places to implement the entrance and exit control management of high-tech products, its shape with international stainless steel profiles, fine craft, full-featured, nice, rust, durable, can resist external damage.The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.





    Features:

    1. Provide normally open / normally close to satisfy management request.
    2. Compatible with RF card readers, bar code readers, biometric readers, push button...
    3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
    4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
    5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
    6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
    7. Support gate open while power failure and recover N/C mode after power on.
    8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
    9. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
    10. One direction or bi-direction is optional.

    12. Direction display to guide passenger which direction is to go.
    13. Card-reading with memory or without memory function.
    14. Flap barrier can control the population inside in the control of software.
    15. Stable running with little noise.



    Production dimension:

    Airport Turnstile Entry Systems Security Checkpoint Pedestrian Control DC Motor



    Technicial specifications:



    Housing size
    1400 long * 300 wide * 1000 high (MM)
    Working direction

    Single or bi-direction
    Housing material
    304 Stainless steel with the thickness of 1.5mm
    Power supply
    AC200±10%V/50±10%Hz
    Driving electromotor
    24V DC
    Input interface
    relay switch signal or 12V level signal or pulse width> 100ms 12V pulse signal, drive current> 10mA
    LED indicator
    2
    Card reader windows
    2
    Pass speed
    40 persons/min (normal open),25~30 persons/min(normal close)
    Gate open, off time
    1~2s
    The time required to enter the state after power on
    3s
    Working environment
    Indoor, outdoor (with a tent over)
    Temperature
    -20℃ to 60℃
    Relative humidity
    ≤ 90%, no condensation





    Case reference:

    Airport Turnstile Entry Systems Security Checkpoint Pedestrian Control DC Motor

    Airport Turnstile Entry Systems Security Checkpoint Pedestrian Control DC Motor
