Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle
  • Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle
  • Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle

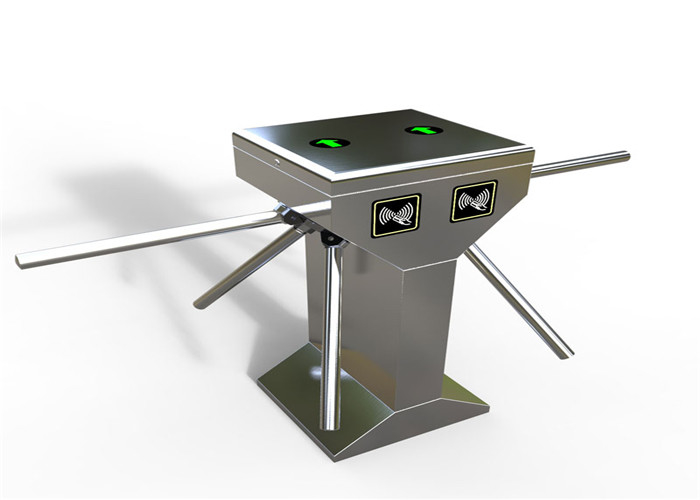

Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01D
Product Details
Core:
Double Core
Tripod Turnstile Type:
Upright
Material Of Housing:
304 Stainless Steel(default)
Application:
Indoor/outdoor
Arm Length:
500mm
Force Capacity:
More Than 100KG
High Light:

Auto Reposition Vertical Tripod Turnstile

,

500mm Arm Vertical Tripod Turnstile

,

120 Degree Open Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description





Double Core Upright Anti Tailing Vertical Tripod Turnstile With Railing , 120 Degree Open Angle



Product description:



The tripod turnstiles efficiently guide high-volume throughput. With the possibility of indoor or outdoor installation, the turnstiles are equipped with an anti-panic system that makes the horizontal arm blocking the passage drop in the case of power cut.



Features of Tripod Turnstile Gate:

1. Auto reposition function, reposition after person pass by

2. Anti tail function auto-lock once turn 120°.

3. Arms auto drop when power off , insure unblocked when power off.

4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

5. Auto alert error function, comfort for user maintain and operate

6. Manual button or remote control ,Bi-directional passage can be set.

7. Red and green light to show pass or stop, leisure to exit and entrance



Advantages
Serious Security
1). Mechanical locking against infractions for increased security and greater turnstile durability
2). Compact turnstile with arms that do not encroach the walkway
Durable & Reliable
1). Covers and outer side panels made from superior-quality stainless steel for exceptional durability
2). Sturdy, corrosion-resistant and heavy-duty mechanism for extended service life



Ergonomics & User Protection
1). Adjustable-pressure hydraulic shock absorbers for silent, smooth rotation and a progressive slowing down of the arm rotation
2). Orientation pictograms to facilitate throughput



Easy installation
1). Front and rear sections specially designed to integrate the selected access control system
2). Many configurations covering all possible pedestrian access control scenarios



Product application:



Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle 0



Access control system



Auto Reposition Vertical Tripod Turnstile 500mm Arm With 120 Degree Open Angle 1



Specifications of Tripod Turnstile Gate:



Item

Specification

Power voltage

AC220/110V±10%V

Open angle

120 degree

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

Motor free

Pass speed

25 to 30 person per minute

Arm length

500mm

Service life

≥ 5 million
