Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-TK01 |

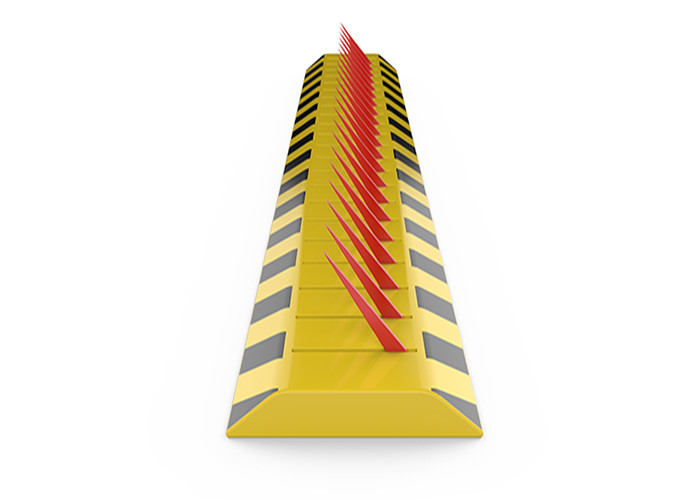

Vehicle Access Control Hydraulic Tire Killer Barricades Simple Installation
Product introduction:
Tire killer barricades are a simple to install highly secure vehicle control barrier, ideally suited for approach entrances to banks, military installations, airports, docks, cash collection depots, government offices etc.
Tire killers teeth retract below ground level when a signal is received from the push button or integrated access control unit providing safe access for authorised vehicles. When the vehicle has passed, the tire killers teeth return to the active position, ensuring total protection.
Product description:
Sinomatic tyre killers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, tyre killer are one of the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to wheels and the rim of the vehicle. Drive unit is electric motor, but in case of power failure tyre killer can be lowered or lifted manually with the help of manual hand pump. With the help of PLC controller, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint etc, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green traffic lights can be integrated to the system very easily.
General Features
Sinomatic tyre killers which electrically operated,is an effective way to stop even wider vehicles than cars. When closed, tyre killer is totally hidden in the street surface, so it allows the drive to all vehicles; when raised, it can stop even great trucks at a speed of 80Km/h. It is typically used for perimeter protection of military bases, embassys, government buildings, airports and some other important public service places, in car parking and a san anti-terrorist measure.
Control Cabinet
IP65 protection is available in the cabinet 1.2 mm thick galvanized sheet metal is utilized in the body. It is painted electrostatically with RAL 7032 emboss point.
Specifications:
Material | Galvanized sheet steel/A3 steel |
Surface treatment | Paint with reflective stripe |
IP | IP68 |
Standard color | Black and yellow |
Length | 2m-3m-4m-5m-6m or Length On Request |
Width | 700mm |
Height from ground | 70~110mm |
Min weight capacity | 40T |
Blade height | 150mm |
Working environment | -40℃~+70℃ |
Control mode | Wireless Remote |
Remote Control distance | ≤30M |
Up/Down speed | 2s |
Emergency Manual Lowering | Yes |
Connection Line to control Unit | 10m (Max Length. 30m) |
Voltage | 220V/110V- 50/60Hz |
Production Photo of tyre killer:
