Traffic Access control Hydraulic Road Blocker , safety road blocker system

Traffic Access control Hydraulic Road Blocker , safety road blocker system

Hydraulic road blocker:

The product use the hydraulic drive technology to intercept . Load-bearing, anti-collision compatibility is strong. Operation is easy and flexible. A lot of advantages,such as hydraulic transmission,movement smooth, fast,low noise, high traffic capacity , safe and reliable, strong carrying capacity, steady lifting,etc.

Road blocker with parking barrier gate, smart card charging management system and access control attendance system compose a perfect crossing management system( can be added according to user`s requirement)

Features of hydraulic road blocker:

• Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.
• Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
• Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
• Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
• Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
• Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
• Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.

Specifications of hydraulic road blocker:

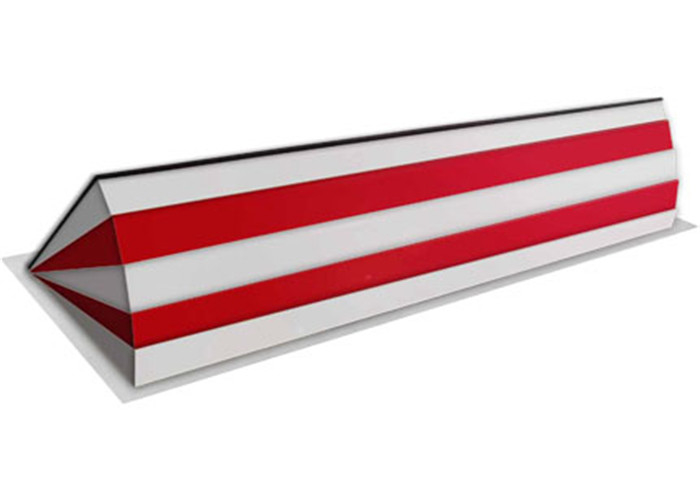

Photo of hydraulic road blocker:

Installation

1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).

2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
